User manual: Installation and Operation of Direction Finder System RHOTHETA RT-600 / SAR-DF 517
- 30 -

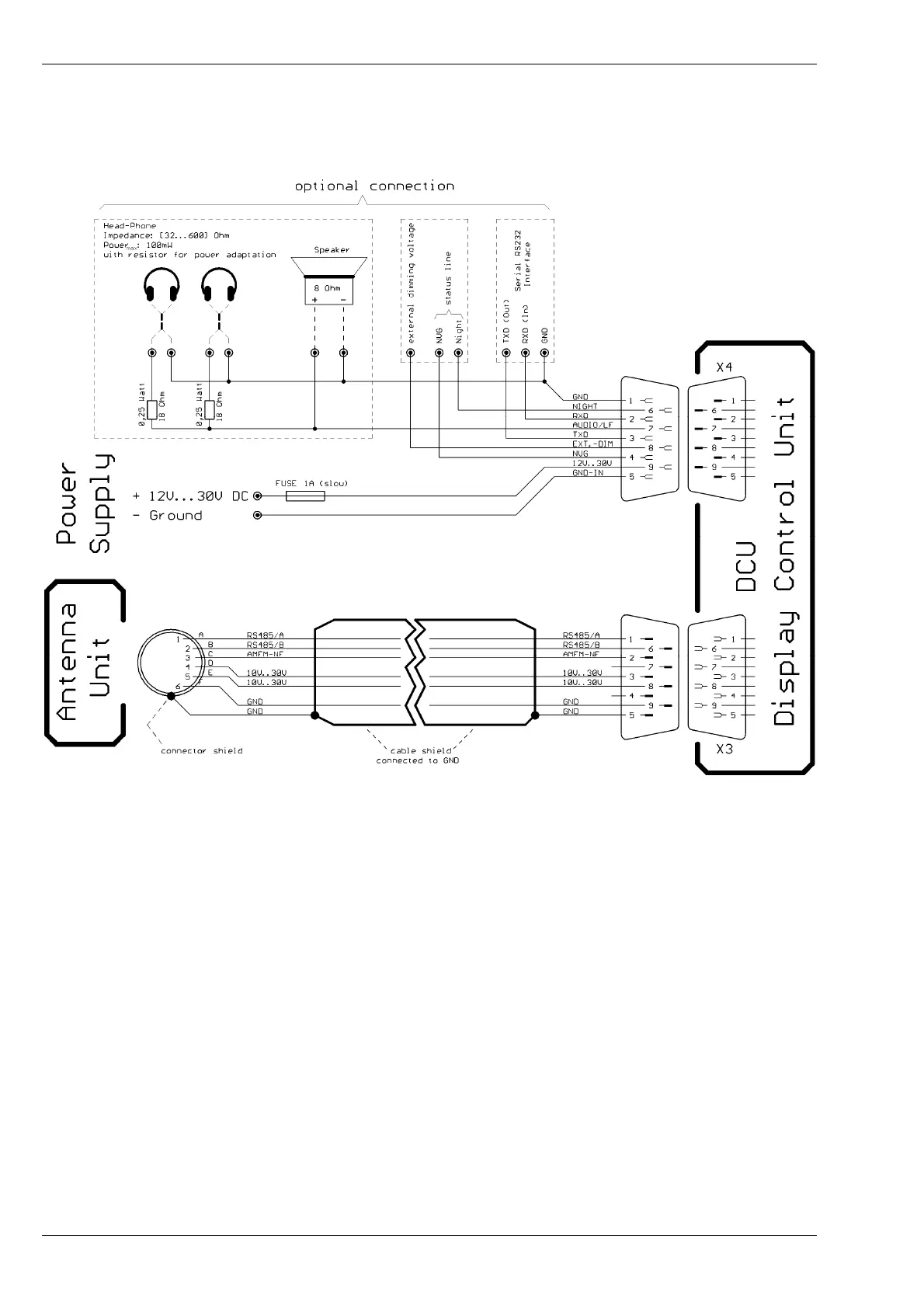

4.3 Cable Connection / Wiring
(Also refer to chapter “Technical Data” for details)
6-pol. Amphenol plug, female
PTG06SE10-6S(SQ)
max. length of cable ca. 10…20 m
9-pol. Sub-D plug
(female/male)
Connecting cable / wiring
