5.3 Mechanical features
Temperature range:
Display Control Unit
• permissible operating temperature
3
: -20 °C ... +60 °C
• permissible storage temperature: -30 °C ... +80 °C
Antenna Unit
• permissible operating temperature
3
: -40 °C ... +60 °C
• permissible storage temperature: -55 °C ... +80 °C
Protective system:
• Antenna Unit: IP 67
Weights:
• Display Control Unit: 250 g
• Antenna Unit: 2000 g
Dimensions:
• Display Control Unit: 82 mm x 82 mm x 43 mm (width x height x depth)
• Antenna Unit: ∅270 mm x 185 mm

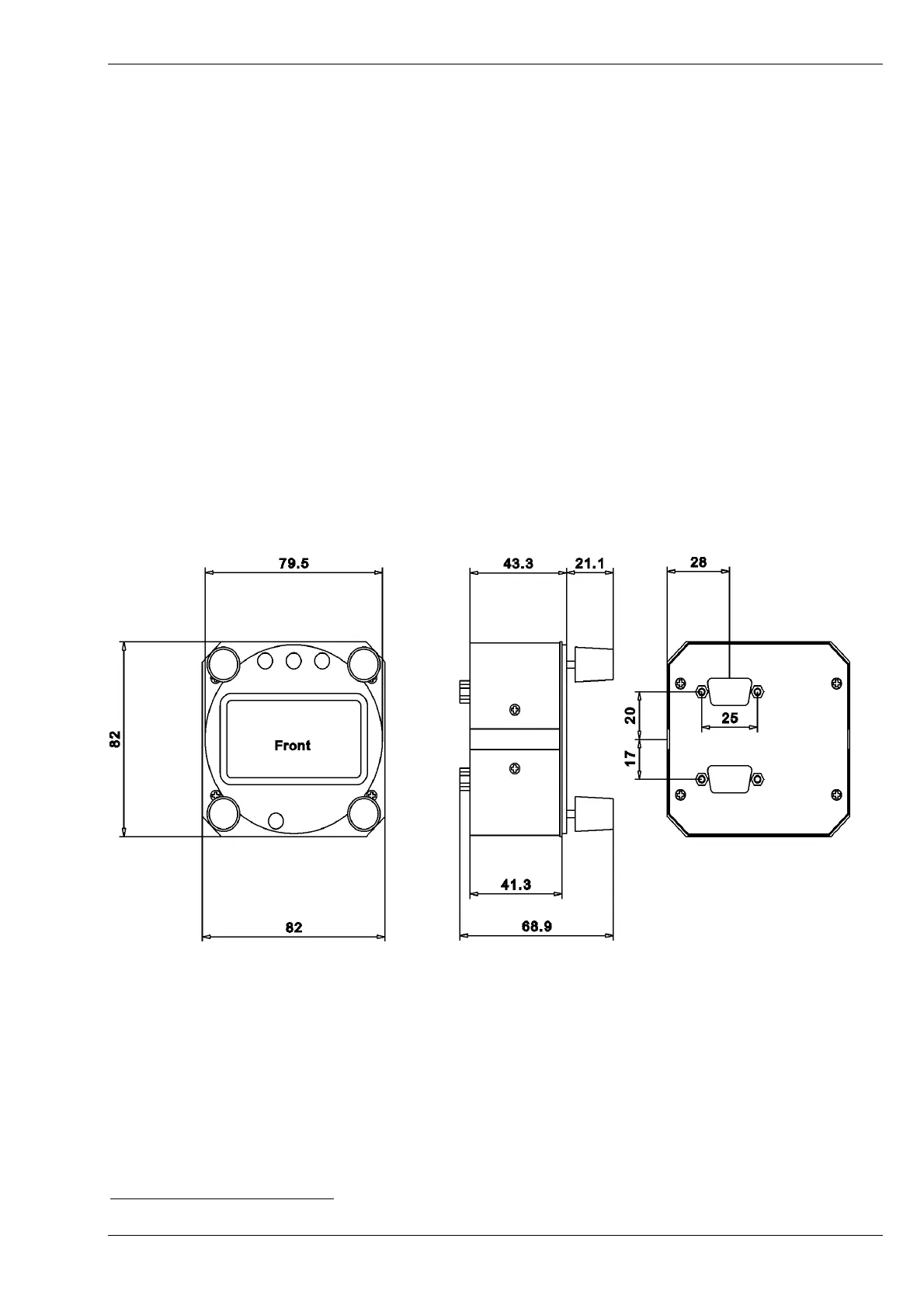

Drawing of Display Control Unit
3
For temperatures lower than –10° C a warm-up perio d of 15 min should be allowed
3
