1.2 Scope of delivery

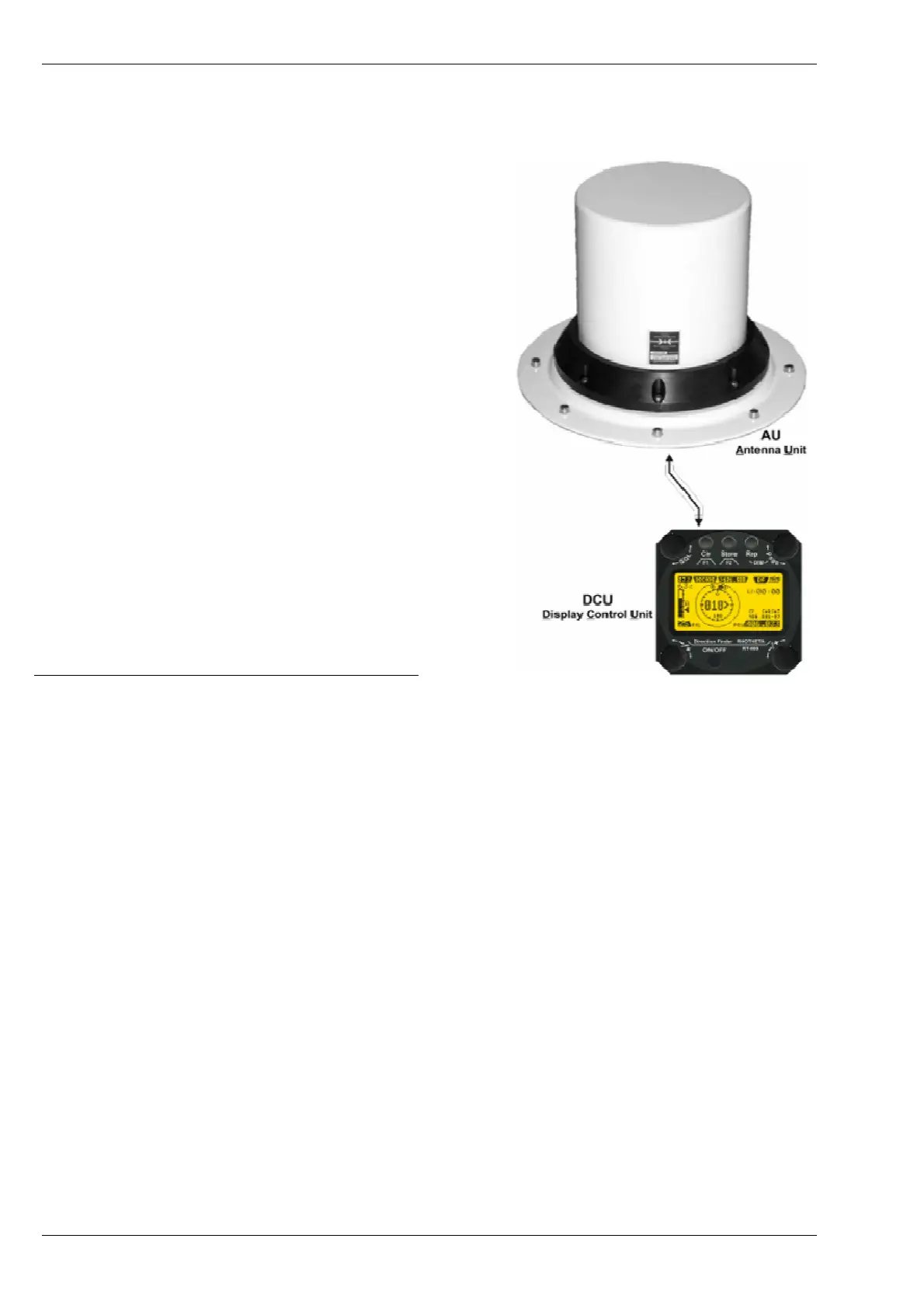

• Display Control Unit
• Antenna Unit (with Receiver and DF-controller)
• Connector set for cable (antenna ⇔ display) and
power-supply.
1.3 Important basic adjustments
In order to achieve best use of the direction finder, the user is able to perform several adjustments of
c
onfiguration. These adjustments can be set up in the setup menu (refer to chapter Operating / Setup Page).
The most important adjustments are:
• Mounting position (adjustment of downside or upside mounting)
• External (remote) dimming of display
Important: If using the external legends-dimming, the limits of the external analog voltage (min / max.)
have to be adjusted correctly in the direction finder setup menu.
For a description of these adjustments, please refer to chapter Operating / Setup Page.
