1. ADF
Lower the ADF over originals placed on the exposure glass.
If you load a stack of originals in the ADF, the ADF will automatically feed the originals one by one.
2. Extenders
Raise these extenders to support large paper.
3. Control panel
See p.35 "Guide to the Names and Functions of the Machine's Control Panel".
4. Internal tray
Copied/printed paper and fax messages are delivered here.
5. Front cover
Open to access the inside of the machine.
6. Paper tray
Load paper here.
7. Paper tray unit (Tray 2 and Tray 3)
Load paper here.
8. Main power switch
To operate the machine, the main power switch must be on. If it is off, turn the switch on.
9. Ventilation holes
Prevent overheating.
10. Internal tray guide
Open out and raise the end fence to support large paper.

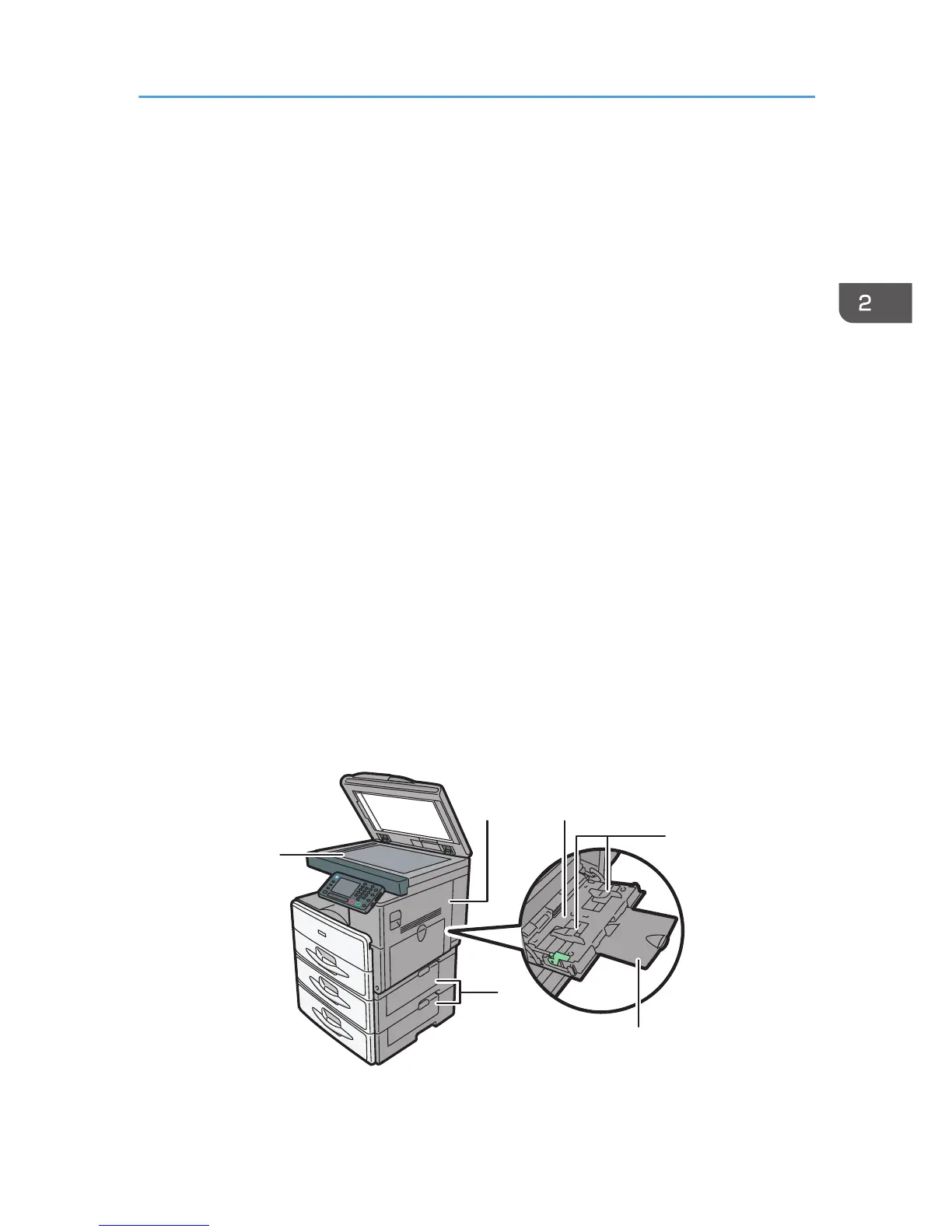

Front and right view
CMR002
1
2
3
4
5
6
Guide to Names and Functions of Components
31
