Fold Unit

B803/B805/D373/D374/D636/D637 14 SM

1.4.3 FOLD UNIT EXIT SENSOR

1. Open the front door.

2. Pull out the stapler unit ( "Positioning Roller").

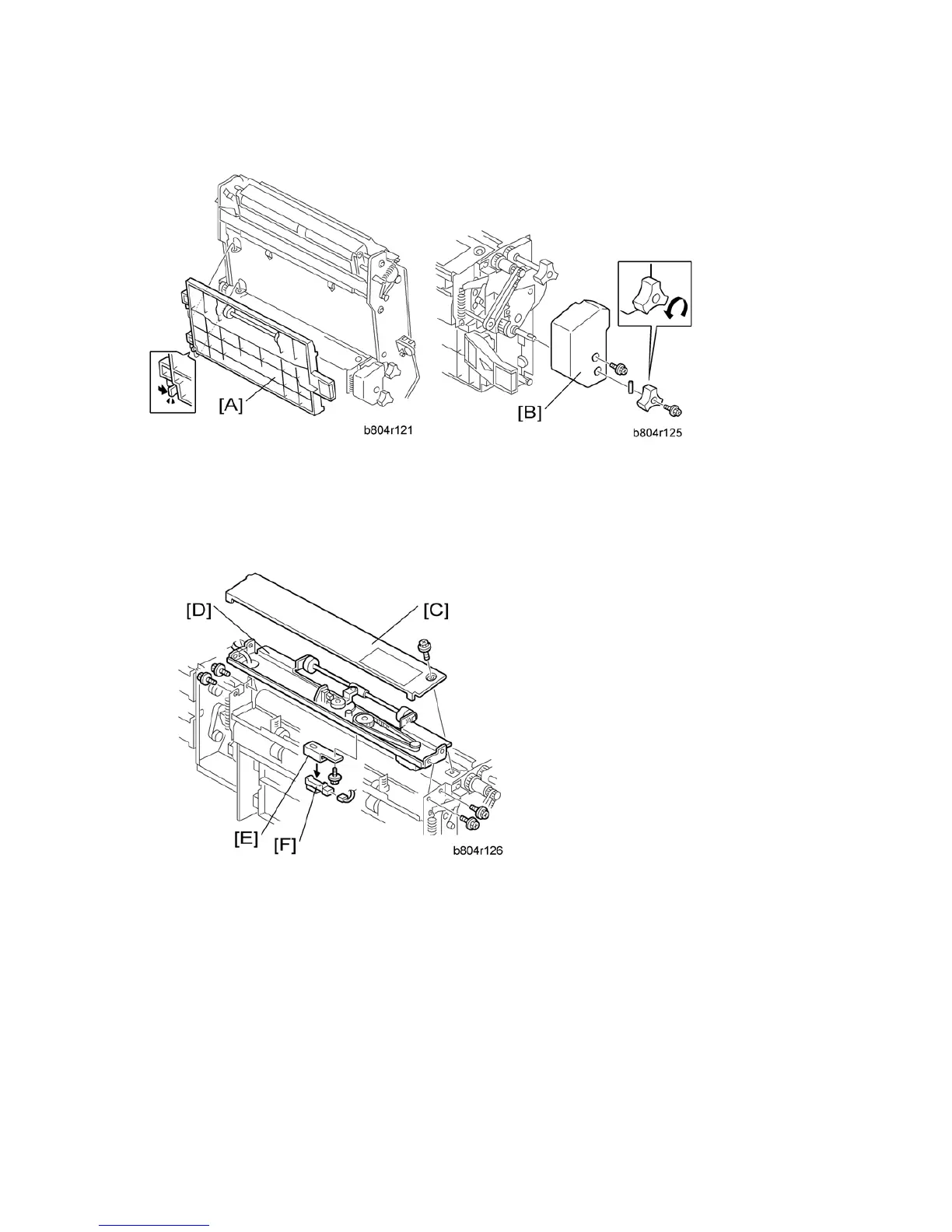

3. Fold unit vertical guide plate [A]

4. Fold unit inner cover [B] ( x2, Spring pin x1)

5. Fold unit upper cover [C] ( x1)

6. Paper clamp mechanism [D] ( x4)

7. Fold unit exit sensor bracket [E] ( x1)

8. Fold unit exit sensor [F] (S31) ( x1)
