Ricoh Aficio MP 4002 Service Manual

STAPLER UNIT
B408/D588 2 SM

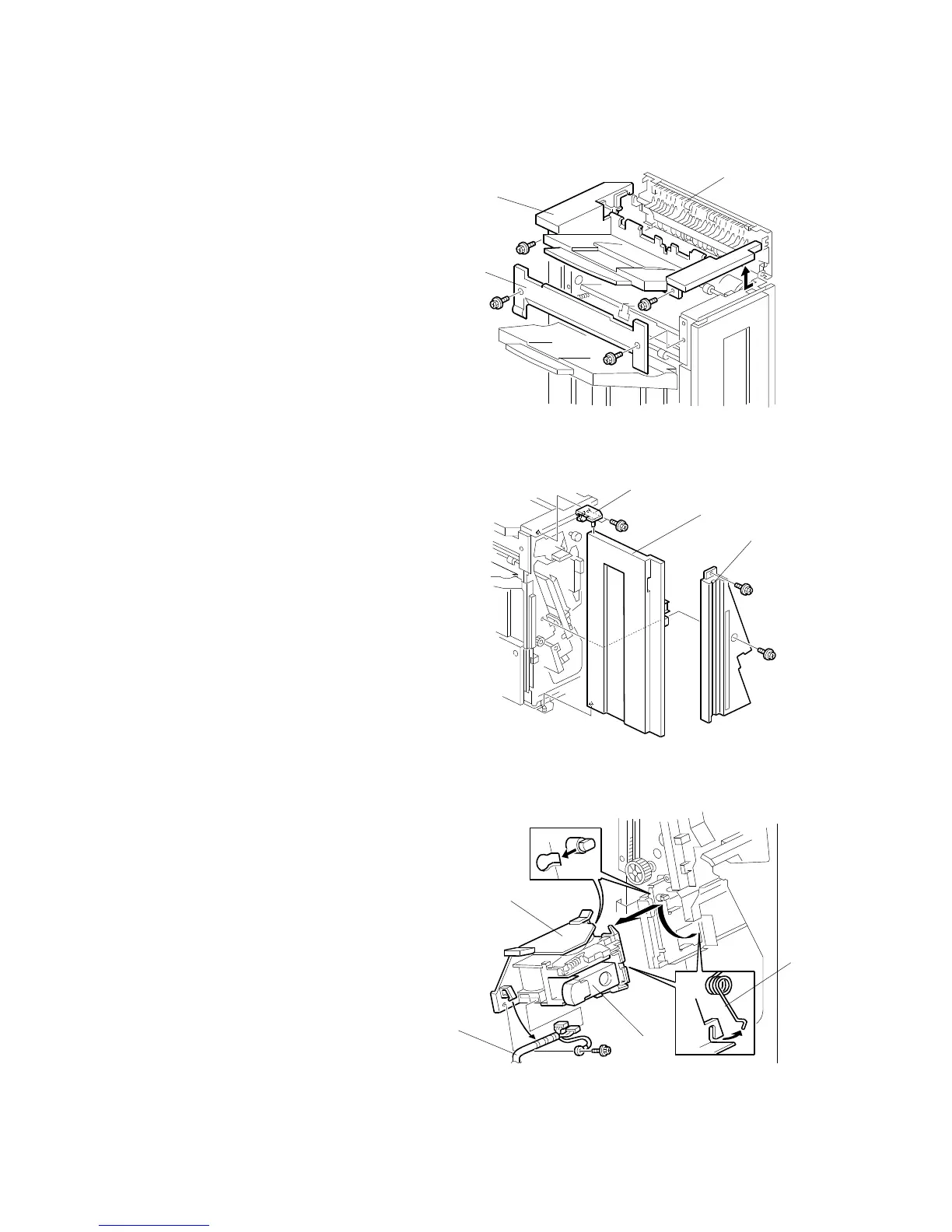

1.2 STAPLER UNIT
1. Side cover [A] ( x 2)
2. Open exit guide plate [B]
3. Upper side cover [C] ( x 2)
4. Front cover support plate [D] ( x 1)
5. Front cover [E]
6. Front inner cover [F] ( x 2)
7. Harness [G]
8. Unhook the spring [H]
9. Turn the stapler unit [I] and take it
out.
10. Bracket [J] ( x 2)
B408R102.WMF
B408R113.WMF
B408R114.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
[I]
[J]
