Ricoh Aficio MP 4002 Service Manual

Fusing
SM 4-61 D129/D130
Replacement
and
Adjustment
4.10 FUSING
4.10.1 FUSING UNIT
 Turn off the main switch and wait until the fusing unit cools down before beginning any
of the procedures in this section. The fusing unit can cause serious burns.
1. Turn off the main power switch.
2. Open the right door.

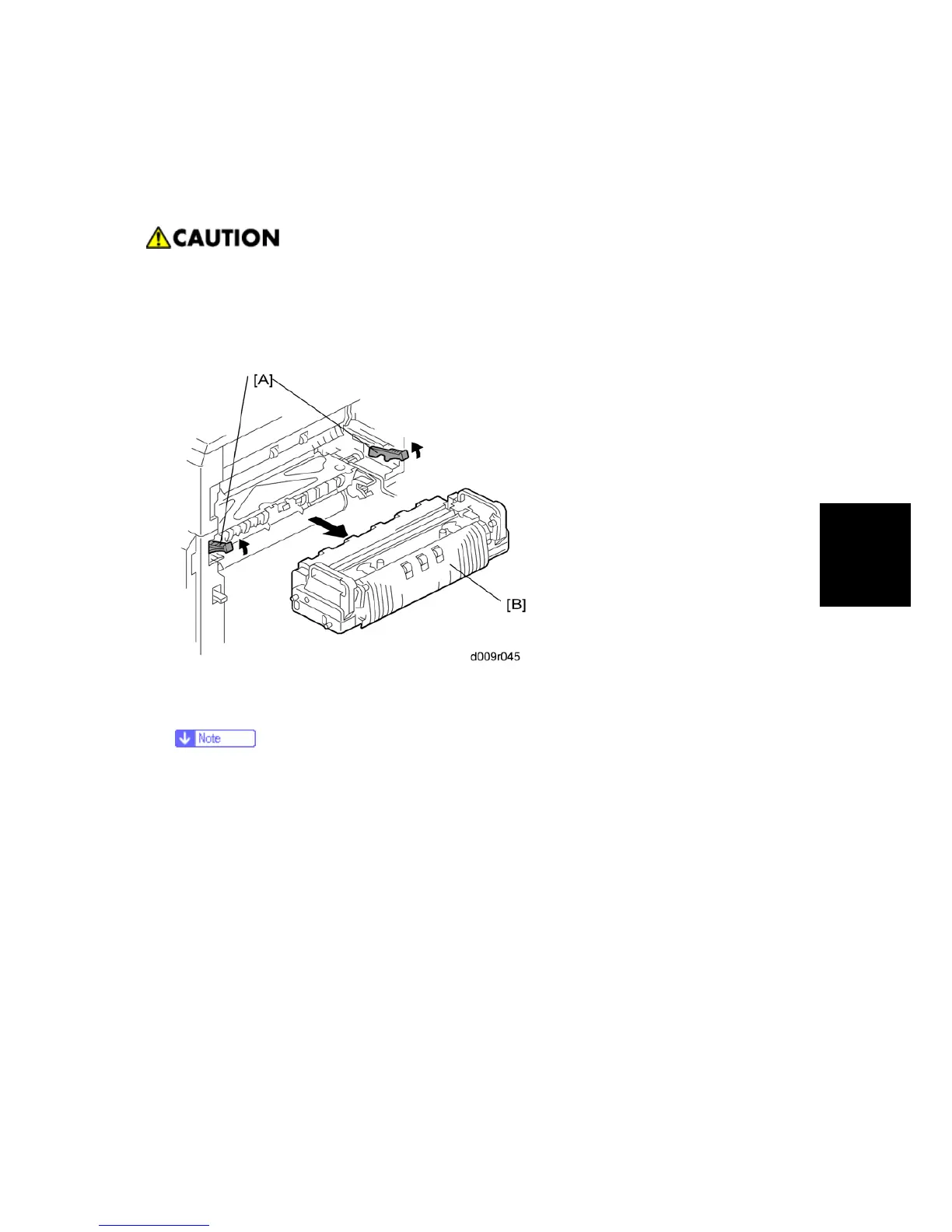

3. Pull up the lock levers [A].
4. Pull the fusing unit [B] until you hear a click.
 The lock levers lock the fusing unit again at this time to prevent the fusing unit from
falling down.
5. Pull up the lock levers [A] again, and then remove the fusing unit [B].

Ricoh Aficio MP 4002 Specifications

General

Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Duplex	Yes
Monthly Duty Cycle	150, 000 pages
Functions	Print, Copy, Scan, Fax
Maximum Paper Size	11" x 17"
Type	Monochrome Laser Multifunction Printer
Print Speed	40 ppm
Scan Resolution	600 dpi
Paper Capacity	Maximum: 4, 400 sheets
Connectivity	USB 2.0, Ethernet 10/100Base-TX
First Print Time	4.1 seconds
Zoom Range	25% - 400%
Fax Transmission Speed	Less than 3 seconds per page
