Ricoh Aficio MP 4002 Service Manual

Scanner
SM 4-29 D129/D130
Replacement
and
Adjustment

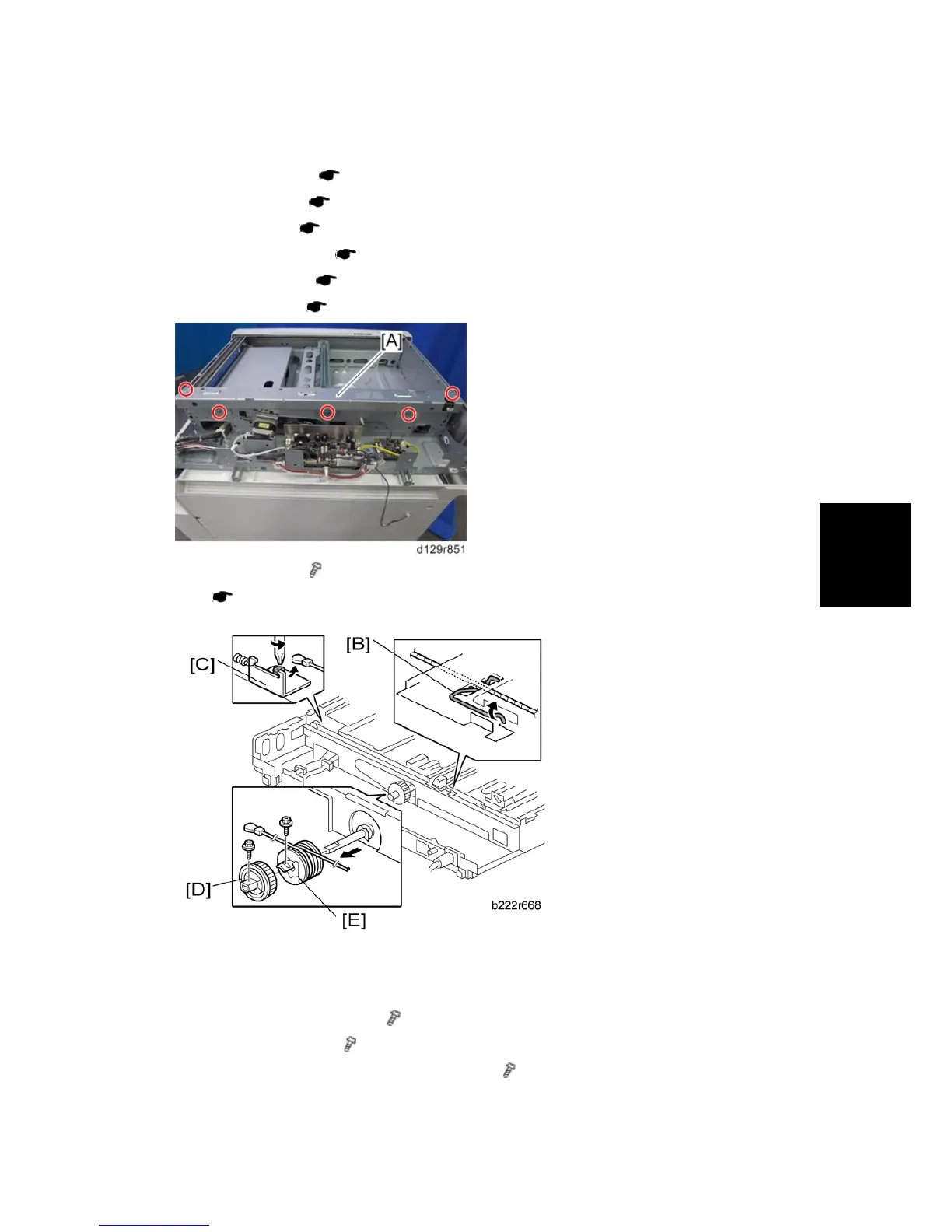

4.4.10 REAR SCANNER WIRE
1. Scanner front cover ( p.4-11 "Scanner Exterior Panels and Operation Panel")
2. Scanner left cover (
p.4-11 "Scanner Exterior Panels and Operation Panel")
3. Scanner left stay (
p.4-24 "Front Scanner Wire")
4. Scanner left rail frame (
p.4-24 "Front Scanner Wire")
5. Scanner rear cover (
p.4-11 "Scanner Exterior Panels and Operation Panel")
6. Scanner rear stay (
p.4-22 "Scanner Motor")
7. Rear rail frame [A] (
x 5)
8. SIO (
p.4-24 "Scanner Motor Drive Board")
9. To make reassembly easy, slide the first scanner to the center.
10. Rear scanner wire clamp [B]
11. Rear scanner wire bracket [C] (
x 1)
12. Scanner motor gear [D] (
x 1)
13. Rear scanner wire and scanner drive pulley [E] (
x 1)

Ricoh Aficio MP 4002 Specifications

General

Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Duplex	Yes
Monthly Duty Cycle	150, 000 pages
Functions	Print, Copy, Scan, Fax
Maximum Paper Size	11" x 17"
Type	Monochrome Laser Multifunction Printer
Print Speed	40 ppm
Scan Resolution	600 dpi
Paper Capacity	Maximum: 4, 400 sheets
Connectivity	USB 2.0, Ethernet 10/100Base-TX
First Print Time	4.1 seconds
Zoom Range	25% - 400%
Fax Transmission Speed	Less than 3 seconds per page
