Ricoh Aficio MP 4002 Service Manual

Installing Controller Options
SM 17 D641
Printer
Scanner Unit
Type 5002
(D641)
1.3.3 FILE FORMAT CONVERTER (D377)
 Unplug the main machine power cord before you do the following procedure.

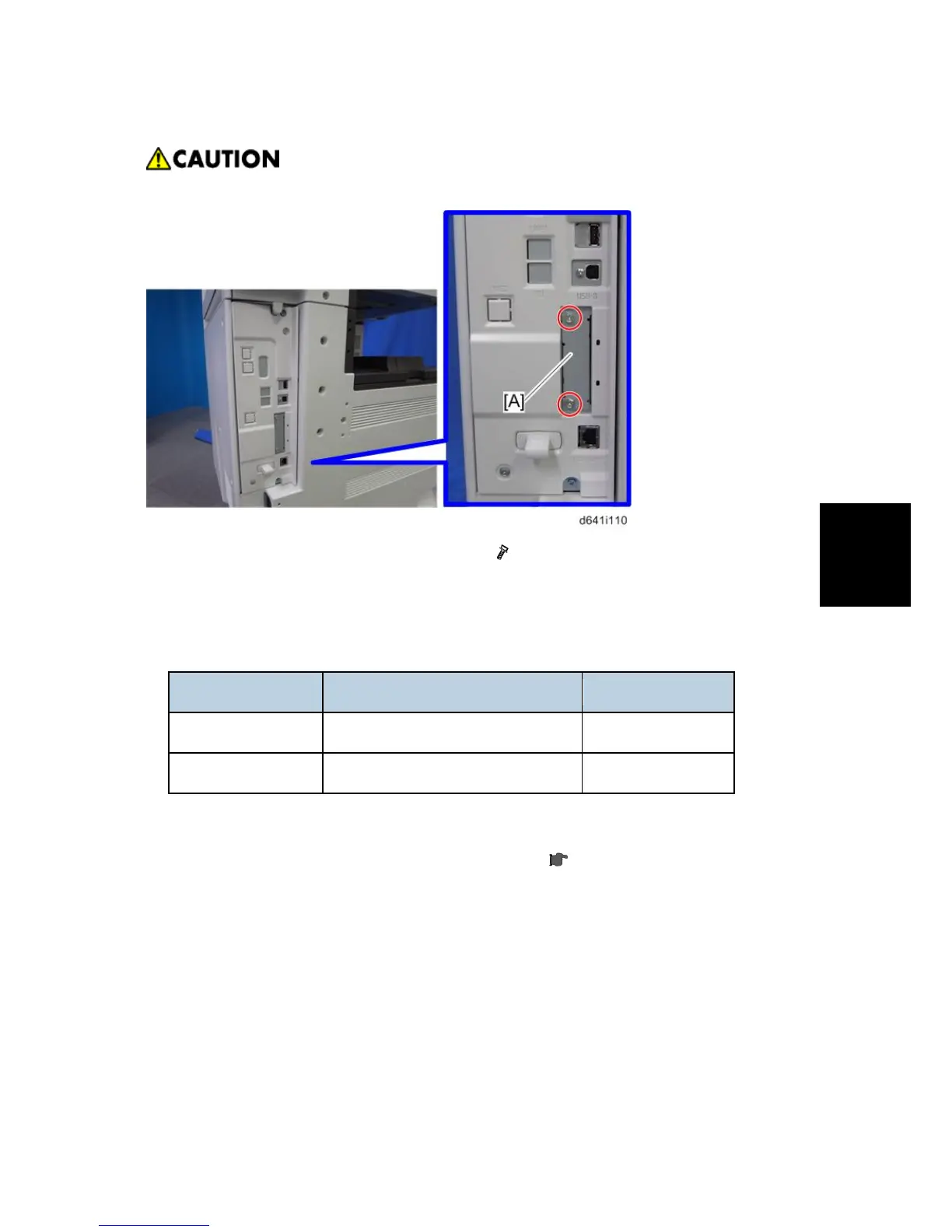

1. Remove the slot cover [A] from the board slot (
x 2).
2. Install the file format converter into the board slot, and then fasten it with screws.
3. Plug in and turn on the main power switch.
4. Check or set the following SP codes with the values shown below.
SP No. Title Setting
SP5-836-001 Capture Function (0:Off 1:On) "1"
SP5-836-002 Panel Setting "0"
5. Check the operation.
6. Make sure that the machine can recognize the option. (
p.30 "Check All Connections")
