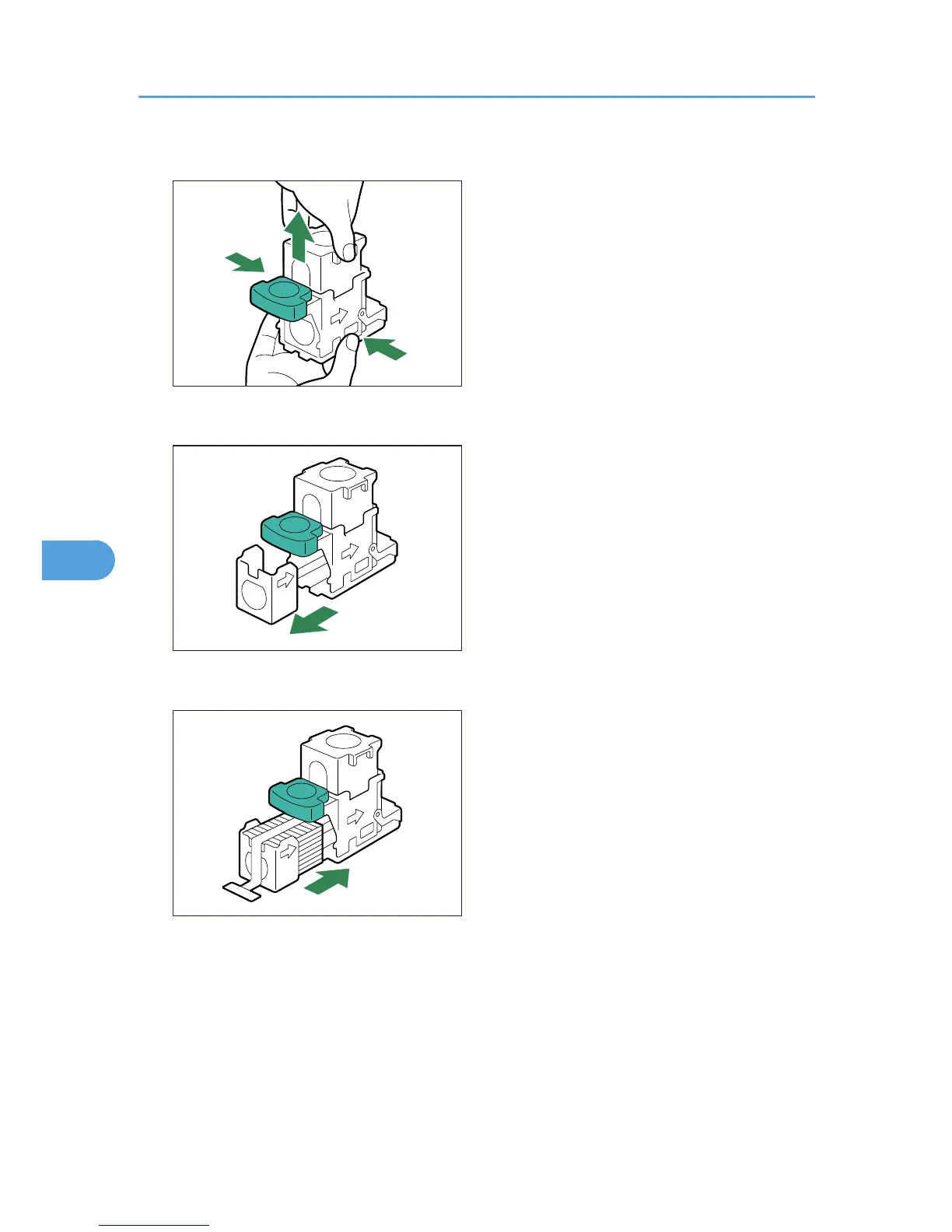

4. Pushing both sides of the cartridge, pull out the upper unit.

BEK089S

5. Take out the empty staple case.

BEK090S

6. Push the new case into the cartridge until it clicks.

BEK091S

6. Replacing Consumables

134
