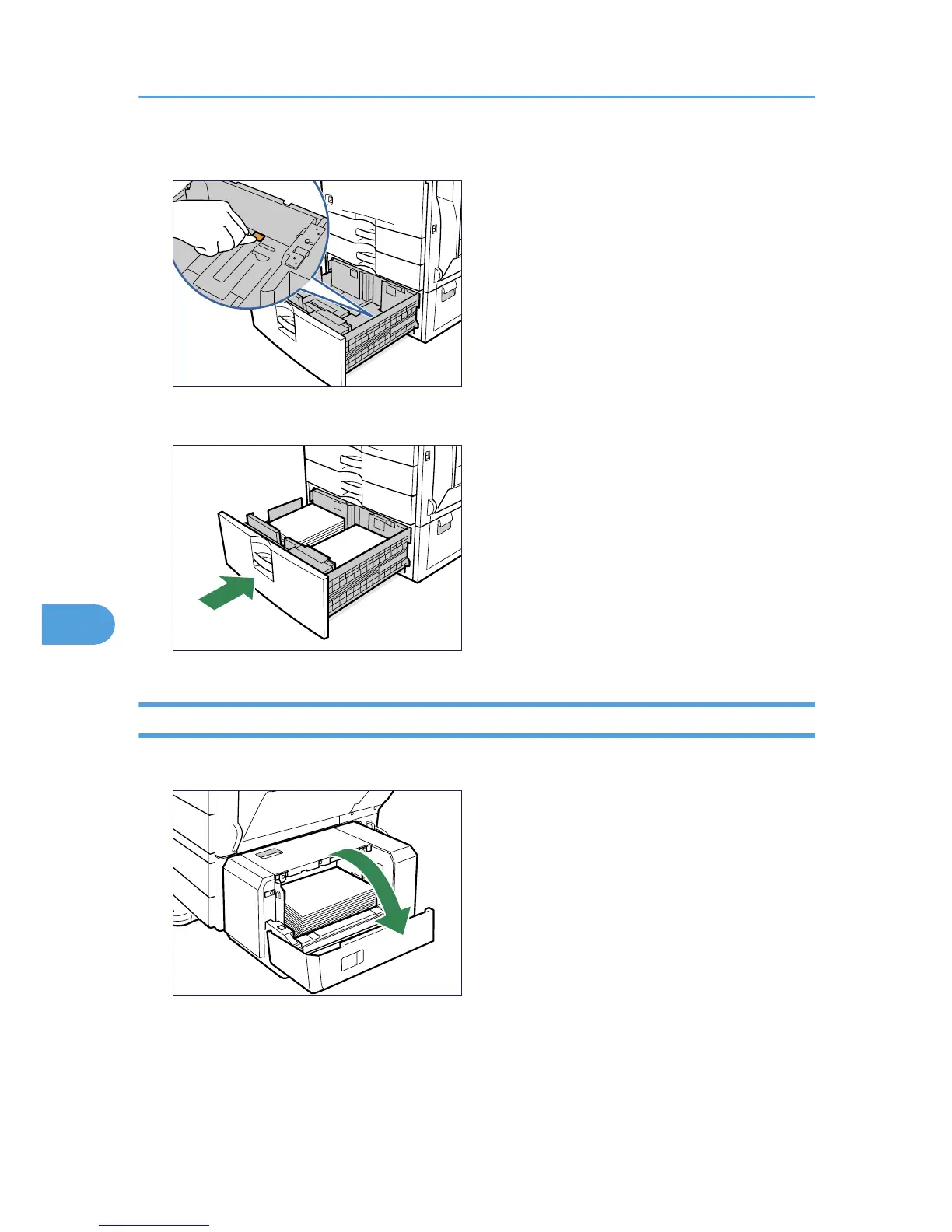

4. Wipe the friction pad with a soft damp cloth.

BEK117S

5. Reload the paper into the paper tray and push it gently into the printer until it stops.

BEK118S

1200-sheet Paper Feed Unit

1. Carefully open the top cover of the 1200-sheet paper feed unit.

BEK260S

7. Cleaning the Printer

140

Operating Instructions1
Table of Contents3
Positions of WARNING and CAUTION Labels7
Manuals for this Printer9
How to Read this Manual10
- Symbols10
Model-Specific Information11
List of Options12
Installing the Operating Instructions13
Guide to the Printer15
Exterior: Front View15
Exterior: Rear View17
Interior18
Control Panel19
Display Panel21
- Reading the Display and Using Keys21
Installing Options23
Available Options23
- Order of Option Installation23
- Where to Install Options24
- Cautions When Re-Installing the Controller Board26
Attaching the Paper Feed Unit28
Installing the Memory Expansion Units32
- Installing the SDRAM Module32
- Installing the Hard Disk35
Installing the Interface Units39
- Installing the Gigabit Ethernet Board39
- Installing the Wireless LAN Interface Board41
- Installing the IEEE 1284 Interface Board45
Installing SD Card Options48
Connecting the Printer Cables51
Ethernet Cable Connection51
- Reading the LED Lamps53
USB Cable Connection54
Parallel Cable Connection56
Configuration57
Ethernet Configuration57
- Specifying an IP Address (no DHCP)58
- Receiving an IP Address Automatically (DHCP)60
- Configuring Network Settings When Using Netware62
- Setting the Ethernet Speed63
Wireless LAN Configuration66
- Setting the SSID68
Setting Security Method of Wireless LAN70
- Setting a WEP Key70
- Setting WPA71
Configuring WPA/WPA275
- Installing a Site Certificate75
- Installing Device Certificate76
- Setting Items of WPA/WPA277
Paper and Other Media79
Supported Paper for each Tray79
- 500-Sheet Paper Trays79
- 2000-Sheet Paper Feed Unit80
- Bypass Tray80
- Paper Weight and Capacity81
Paper Recommendations82
- Storing Paper82
- Types of Paper and Other Media82
- Paper Not Supported by this Printer89
- Print Area89
Loading Paper91
- 500-Sheet Paper Feed Trays91
- 2000-Sheet Paper Feed Unit99
- Specifying a Paper Type100
- 1200-Sheet Paper Feed Unit101
- Bypass Tray104
Adding Toner111
Replacing Consumables111
Replacing Maintenance Kit a116
- Replacing the Development Unit116
Replacing Maintenance Kit B123
- Replacing the Transfer Unit124
- Replacing the Fusing Unit127
Adding Staples131
- When the 1000-Sheet Finisher Is Installed131
- When the 2 Tray Finisher Is Installed135
Cleaning the Printer139
Cautions When Cleaning139
Cleaning the Friction Pads140
- 500-Sheet Paper Trays140
- 2000-Sheet Paper Feed Unit141
- 1200-Sheet Paper Feed Unit142
Cleaning the Registration Roller144
Adjusting the Printer147
Adjusting Image Density147
Adjusting Printing Position149
Troubleshooting153
Error and Status Messages Appears on the Control Panel153
Panel Tones157
Printer Does Not Print158
- Checking the Port Connection159
Printing Problems161
Additional Troubleshooting168
Removing Jammed Staples170
- When the 1000-Sheet Finisher Is Installed170
- When the 2 Tray Finisher Is Installed172
Removing Punch Waste175
- When the 2 Tray Finisher Is Installed175
Removing Misfed Paper177
Paper Misfeed Message (A)178
Paper Misfeed Message (B)180
Paper Misfeed Message (C)182
Paper Misfeed Message (D)184
Paper Misfeed Message (R)186
- When the 1000-Sheet Finisher Is Installed186
- When the 2 Tray Finisher Is Installed188
Paper Misfeed Message (Y)193
Paper Misfeed Message (Z)194
Paper Misfeed Message (U)196
Duplex Print Always Misfeeds200
11. Appendix203
Moving and Transporting the Printer203
- Moving the Printer203
Consumables206
- Toner206
- Maintenance Kit206
- Staple Cartridge207
Specifications208
- Mainframe208
- Options210
Index221
