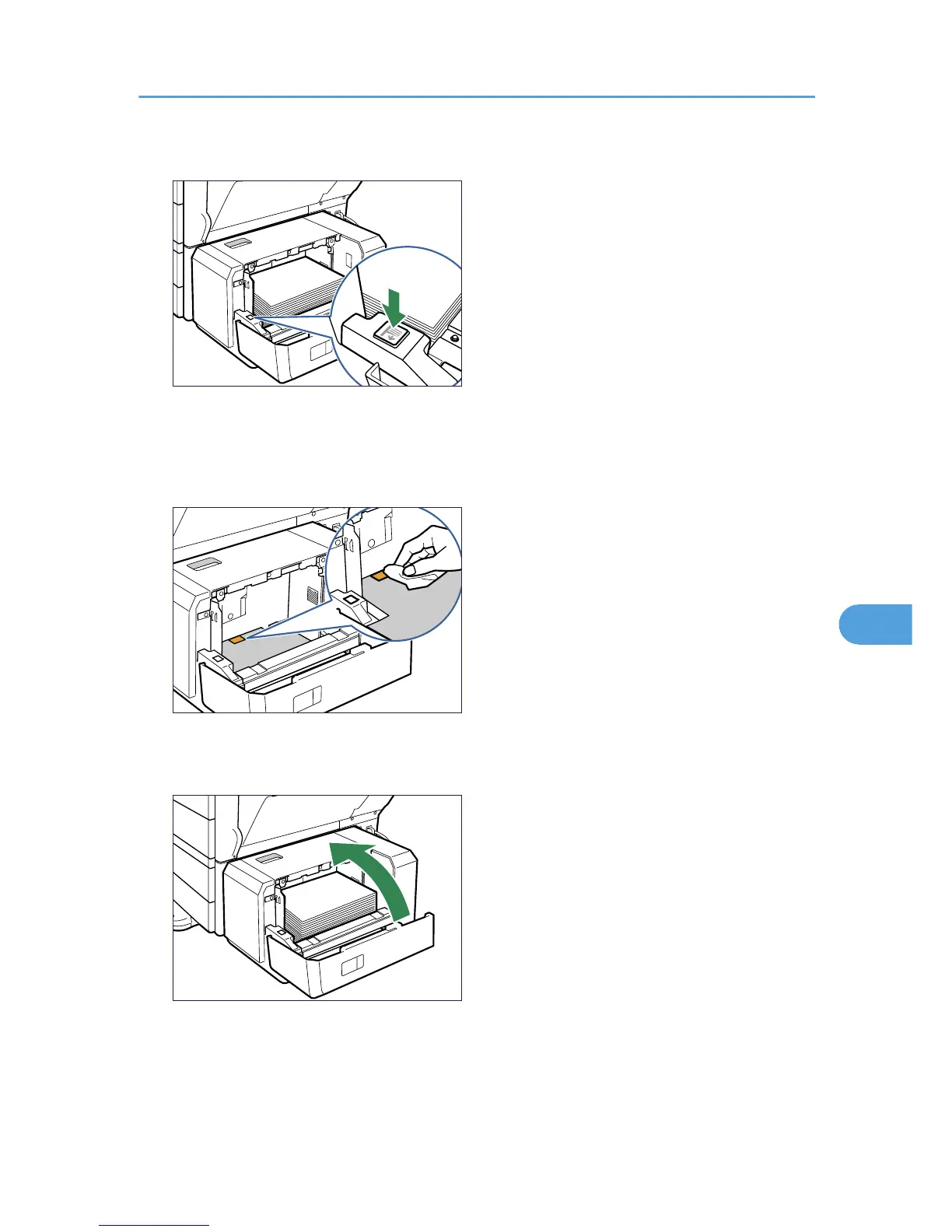

2. Press the [Down] key.

BEK261S

The bottom plate is moving down.

3. Remove the loaded paper.

4. Wipe the friction pad with a soft damp cloth.

BEK127S

5. Reload the paper into the 1200-sheet paper feed unit and close the top cover of the 1200-

sheet paper feed unit.

BEK262S

Cleaning the Friction Pads

141
