When the 2 Tray Finisher is Installed

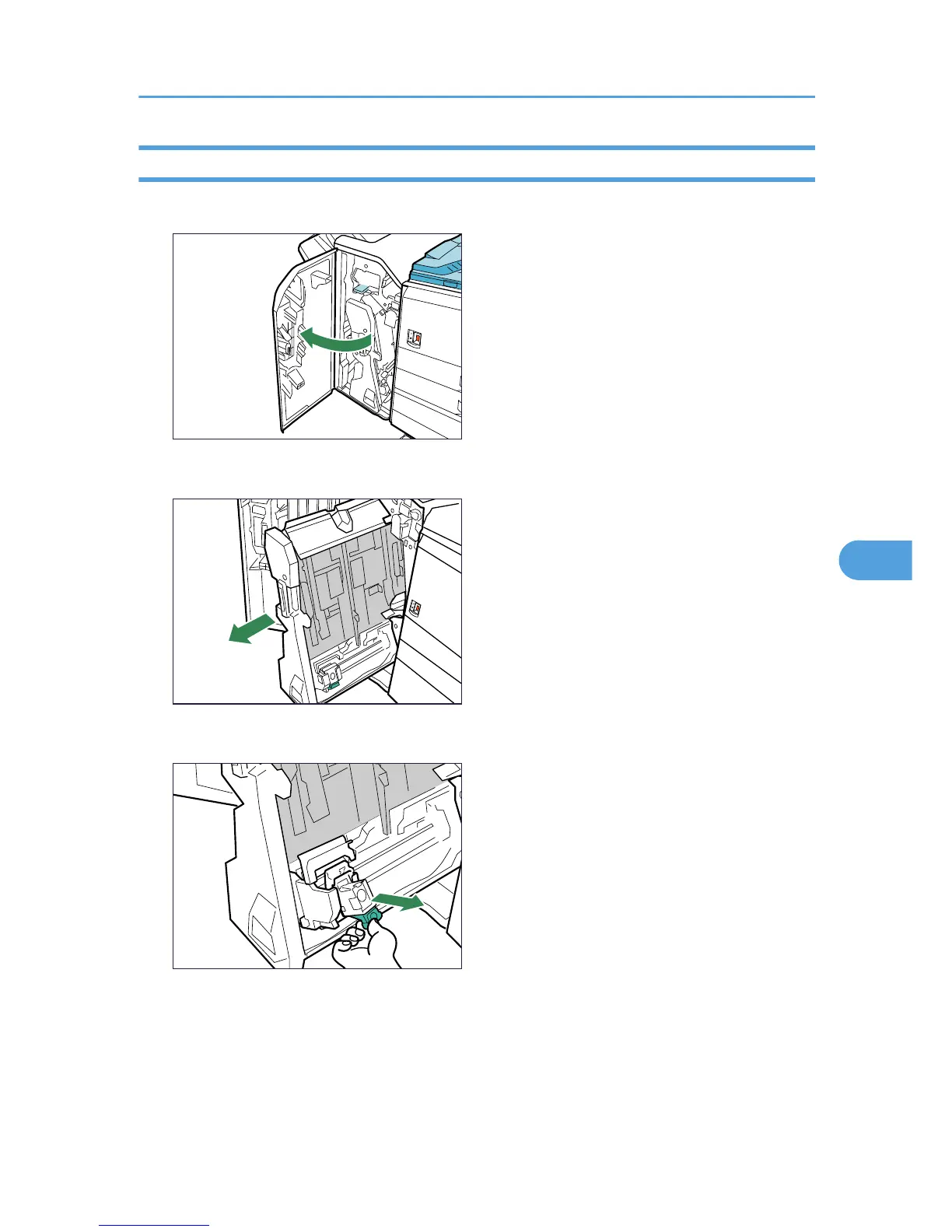

1. Open the front cover of the finisher.

BEK110S

2. Holding the lever, pull out the staple unit.

BEK084S

3. Hold and lift the lever on the cartridge and pull the cartridge gently out of the staple unit.

BEK085S

Adding Staples
