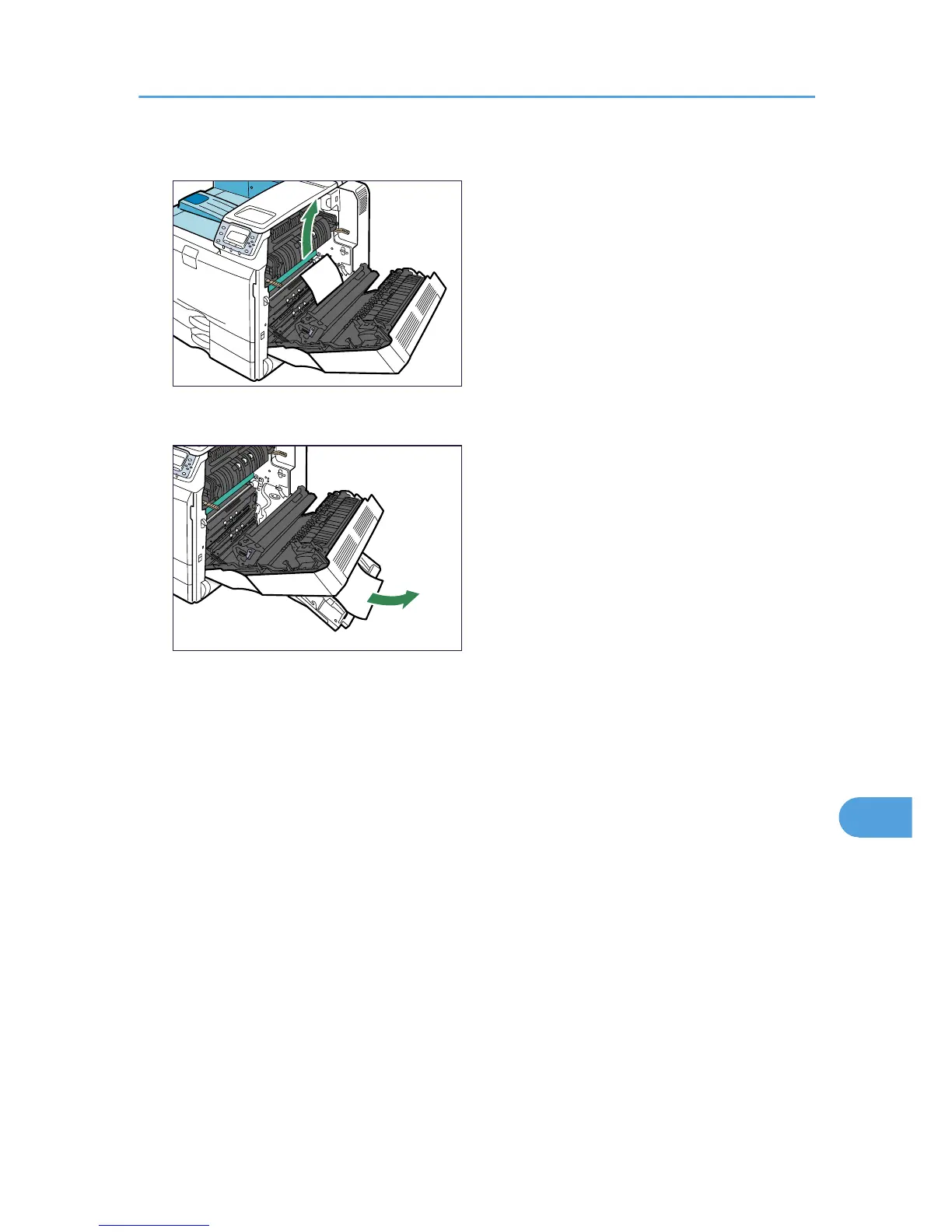

3. If the paper cannot be removed, open the bypass tray and pull it out slowly.

BEK027S

4. Remove the paper slowly from the bypass tray.

BEK028S

5. Carefully close the right cover.

6. Carefully close the bypass tray.

Paper Misfeed Message (A)

177
