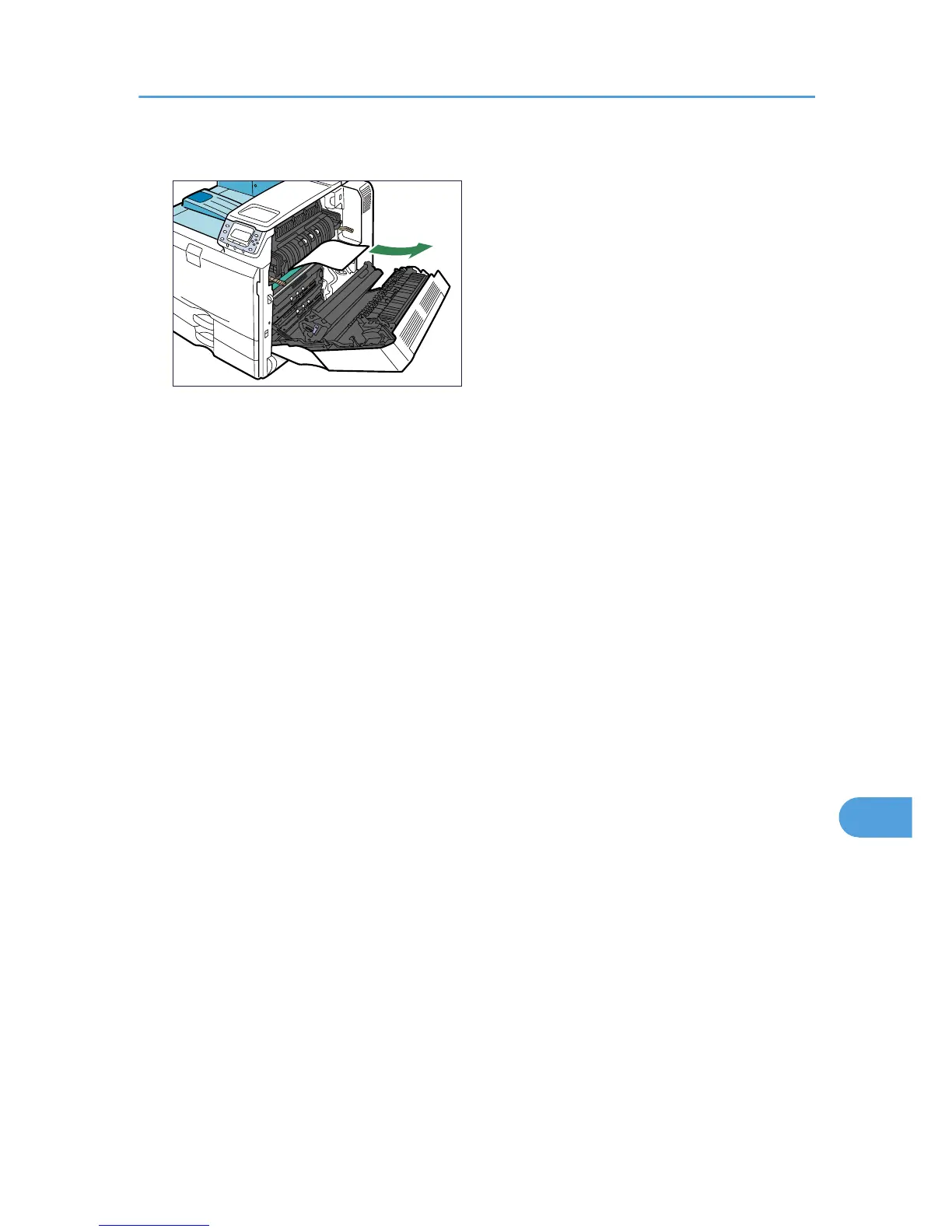

3. Remove misfed paper slowly.

BEK030S

4. Carefully close the right cover.

Paper Misfeed Message (B)

179
