Ricoh Aficio SP C231N

AIO Cartridge

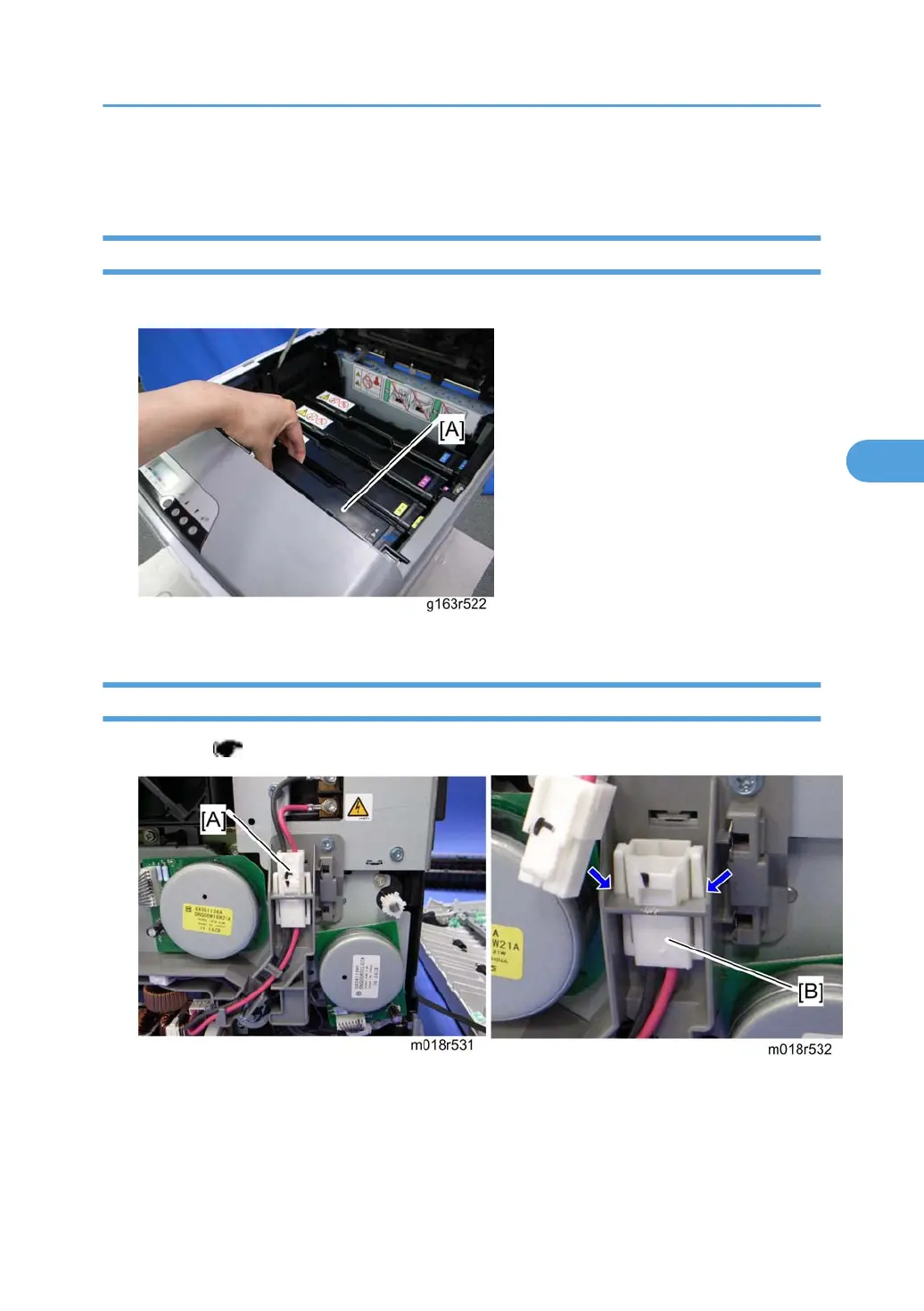

AIO Cartridge (All In One Cartridge)
1. Open the top cover.
2. AIO cartridge [A]
Black AIO Motor
1. Left cover ( p.25)
2. Disconnect the fusing connector [A] and remove the fusing relay harness [B] (hooks).
AIO Cartridge
33
4
