Replacing the Maintenance Kit
35
2

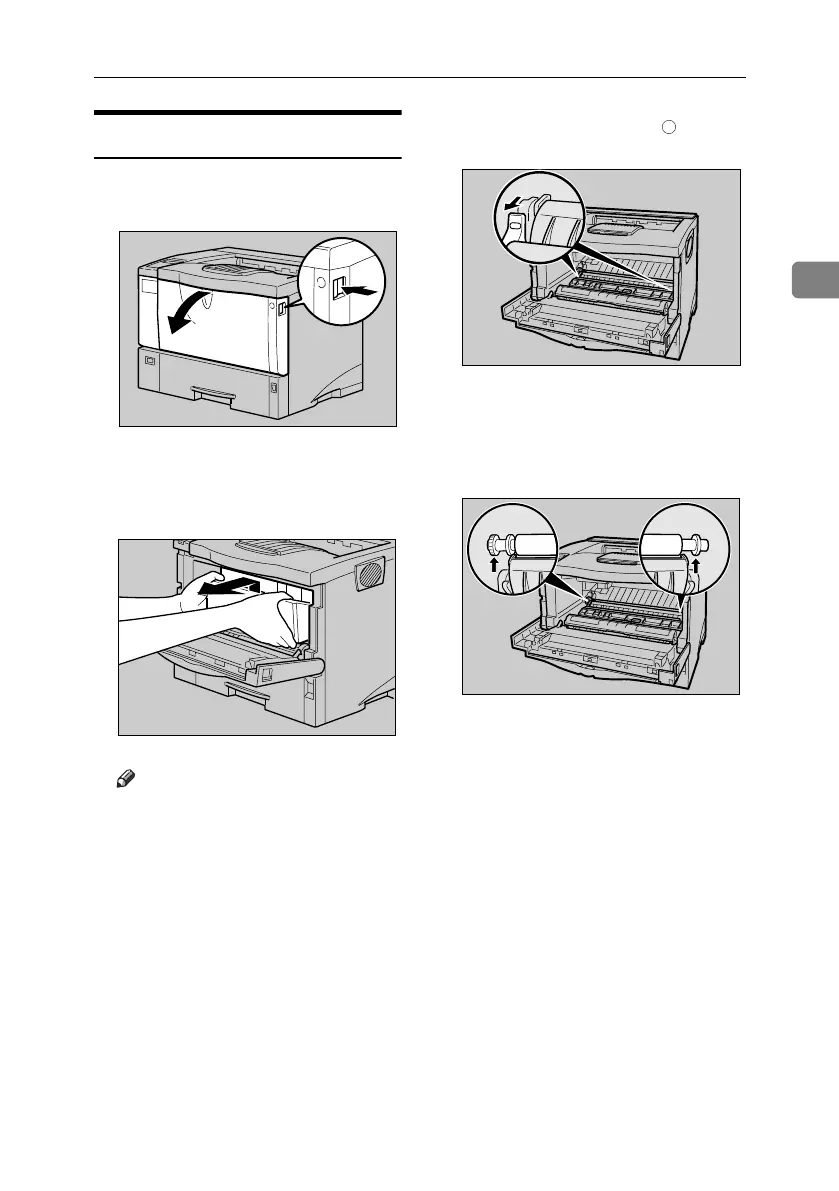

Replacing the Transfer Roller
A Open the front cover by pushing
the front cover release button.
B Pull the toner cartridge out of the
printer, while lifting the front
side.
Note
❒ Be sure to place the used car-
tridge on the level place.
C To avoid making your hands dirty
with toner from the transfer roller,
wear the gloves included in the
maintenance kit.
D Hold the lock levers (“ ” parts),
and then pull them.
E Hold the green parts of the roller
on both sides, and then remove
the roller from the printer as
shown in the illustration.
AGN020S
AGN022S
ZKGM200E
ZKGM210E
