Replacing the Maintenance Kit
37
2

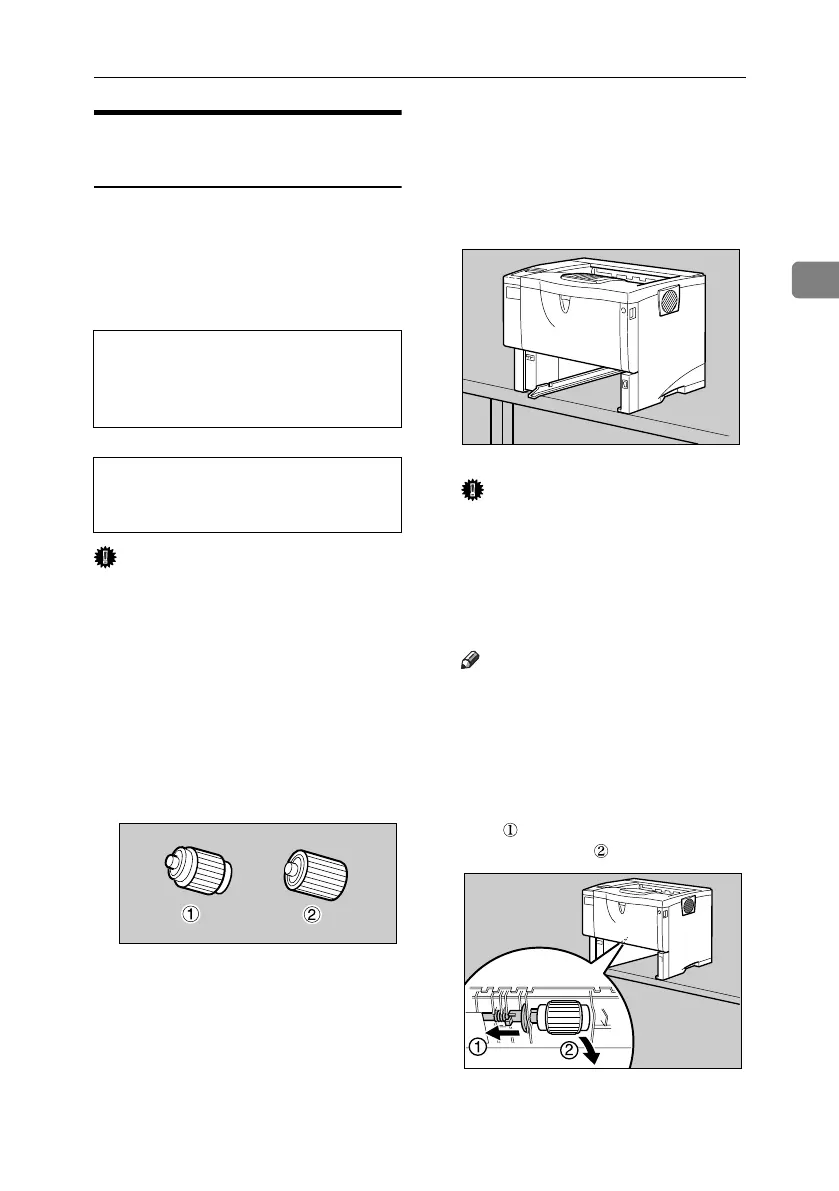

Replacing the Paper Feed
Rollers
Replace all feed rollers including the
printer and the optional paper feed
unit(s). The following procedure
shows how to replace the printer's pa-
per feed rollers.
CAUTION:
CAUTION:
Important
❒ The following are examples of re-
placing the paper feed roller on the
paper tray.
❒ You can replace the paper feed
roller on the optional paper feed
unit by following the procedures
below. The paper feed roller on the
optional paper feed unit differs
from the one on the paper tray.
Confirm the type of paper feed
roller you are installing.
A For the paper tray
B For the paper feed unit
A If the optional duplex unit is in-
stalled, uninstall them from the
printer.
B Move the printer to the edge of a
sturdy and stable table or desk.
Important
❒ Always move the printer hori-
zontally. Moving the printer
facing up on down may cause
the toner to scatter.
❒ Do not put the printer on an un-
stable or tilted surface.
Note
❒ If the printer is equipped with
the optional paper feed unit, do
not move the printer and the
unit together, because they are
not securely attached.
C Slide the green lock lever to the
left ( ), and then remove the pa-
per feed roller ( ).
• When lifting the machine, use
the inset grips on both sides.
Otherwise the printer could
break or cause injury if dropped.
• Lifting the paper feed unit care-
lessly or dropping it may cause
injury.
AGN017S
AGN021S
ZKGM120E
KirP4GB_Mainte-F6_FM_forPaper.book Page 37 Thursday, May 12, 2005 11:48 AM
