Replacing Consumables and Maintenance Kit
38
2

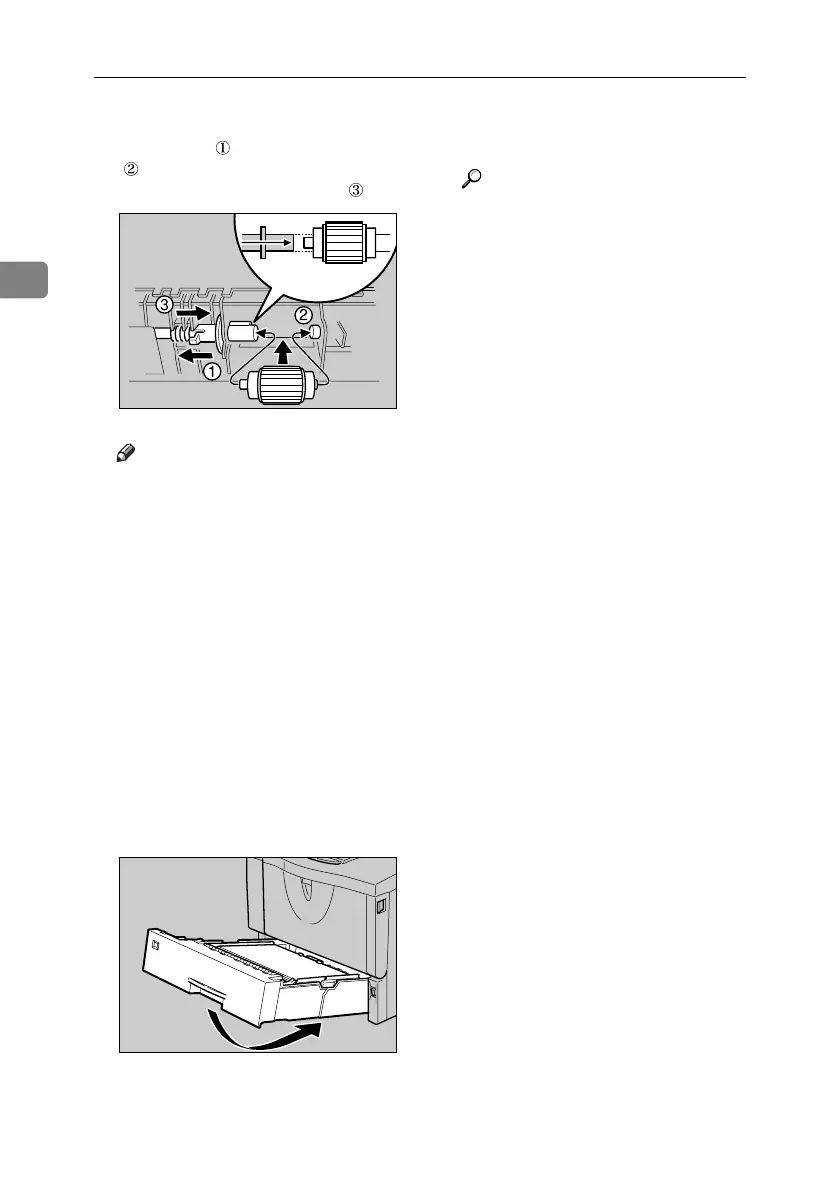

D While sliding the green lock lever
to the left ( ), set the new roller
( ). Then return the green lock le-
ver to its original position ( ).
Note
❒ Check the green lock lever se-
cures the roller correctly by
making sure the new roller ro-
tates smoothly.
E If the printer is equipped with the
optional paper feed unit(s), fol-
low the same procedure when re-
placing the paper feed roller.
If you installed two paper feed
units, also replace both paper feed
rollers.
F Place paper in the paper trays and
additional removed paper trays.
Lift the front of the tray, and then
slide it carefully into the printer
until it stops.
G Reinstall the optional duplex unit
if it was removed.
Reference
See p.79 “Moving and Trans-
porting the Printer” , Appendix.
ZKGM130E
ZKGY150E
