When “Remove Misfeed Paper Exit Cover” Appears
75
6

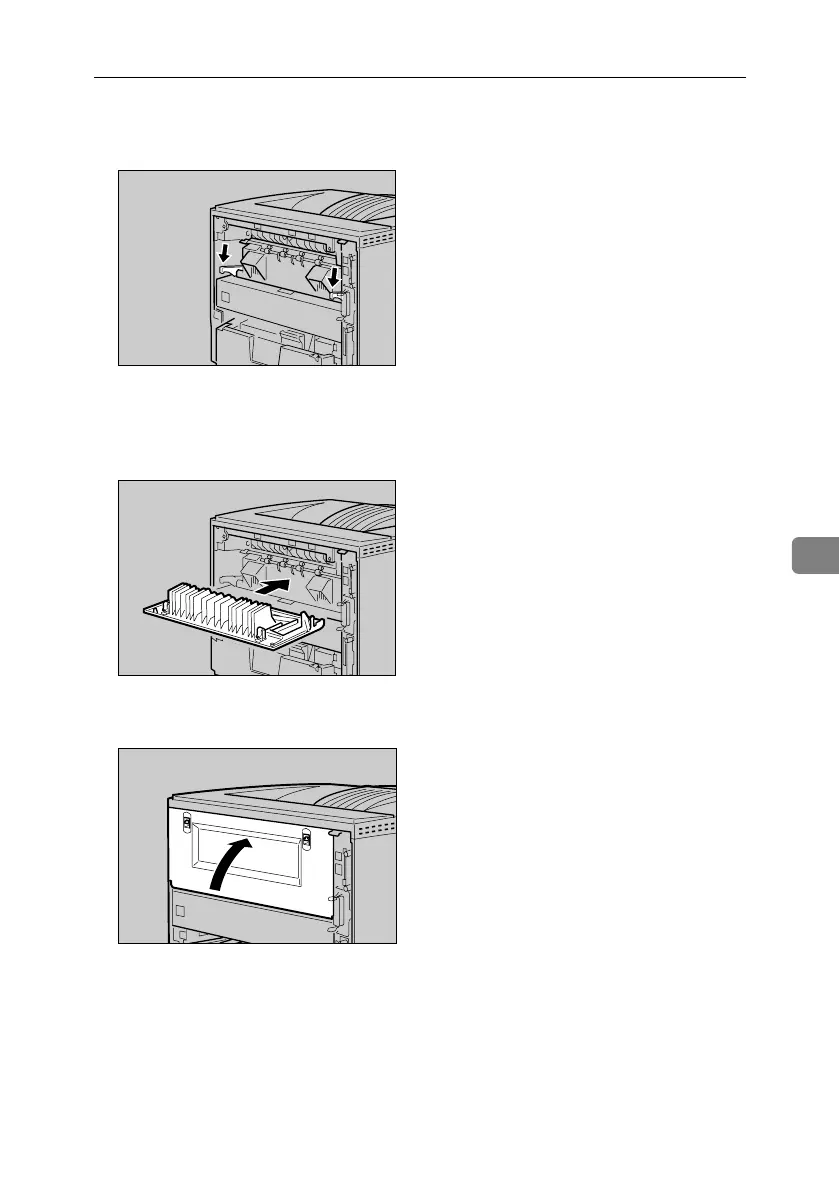

G Push the lock levers of the fusing
unit down until it clicks.
H Insert the rear cover to the inside
grooves on both sides of the print-
er in a horizontal direction.
I Close the rear cover.
AGN009S
ZKGX221E
AGN005S
