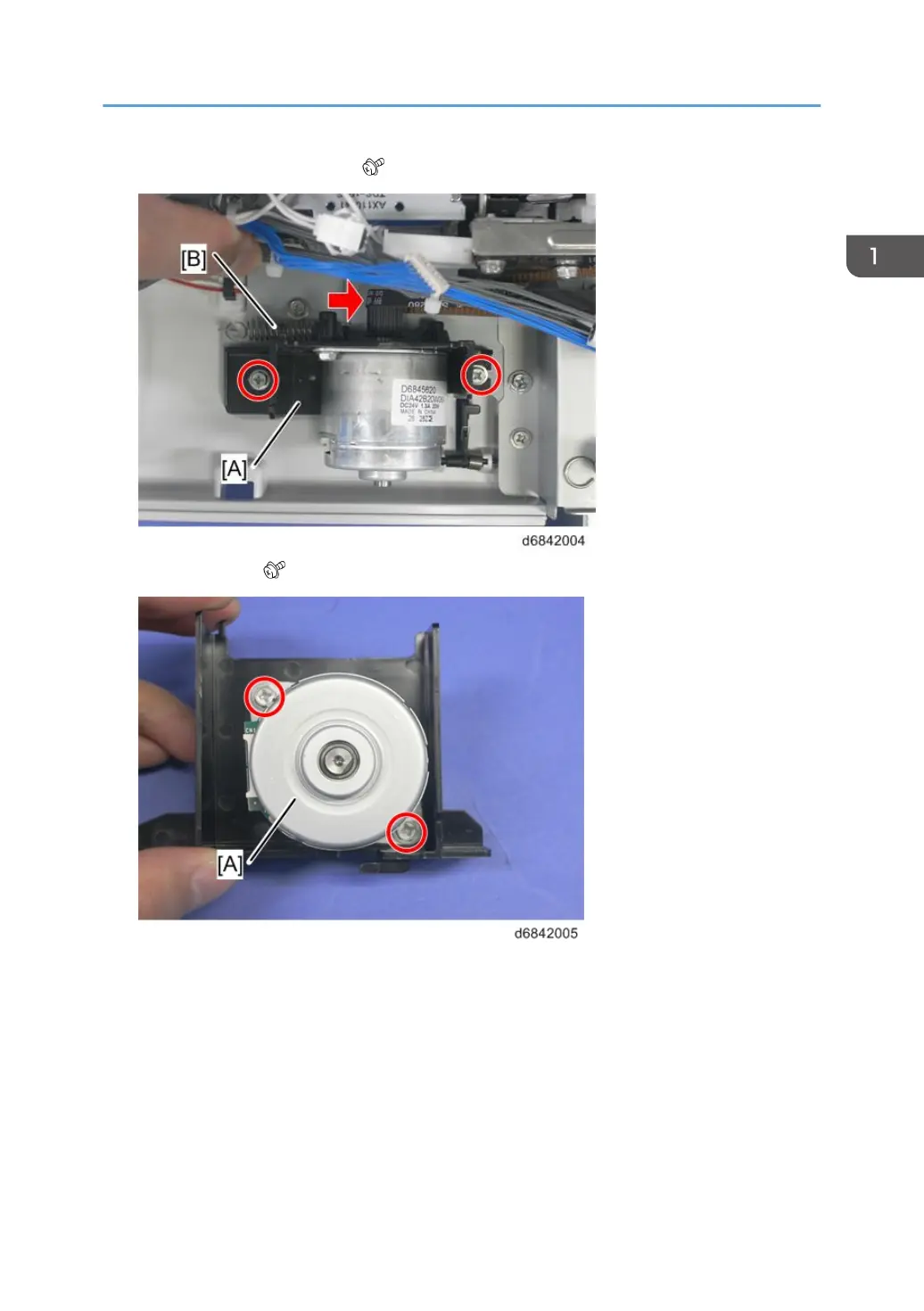

4. Feed motor with bracket [A] ( ×2, spring [B]×1, Timing belt ×1).
5. Feed motor [A] ( ×2).
Feed Motor
27
