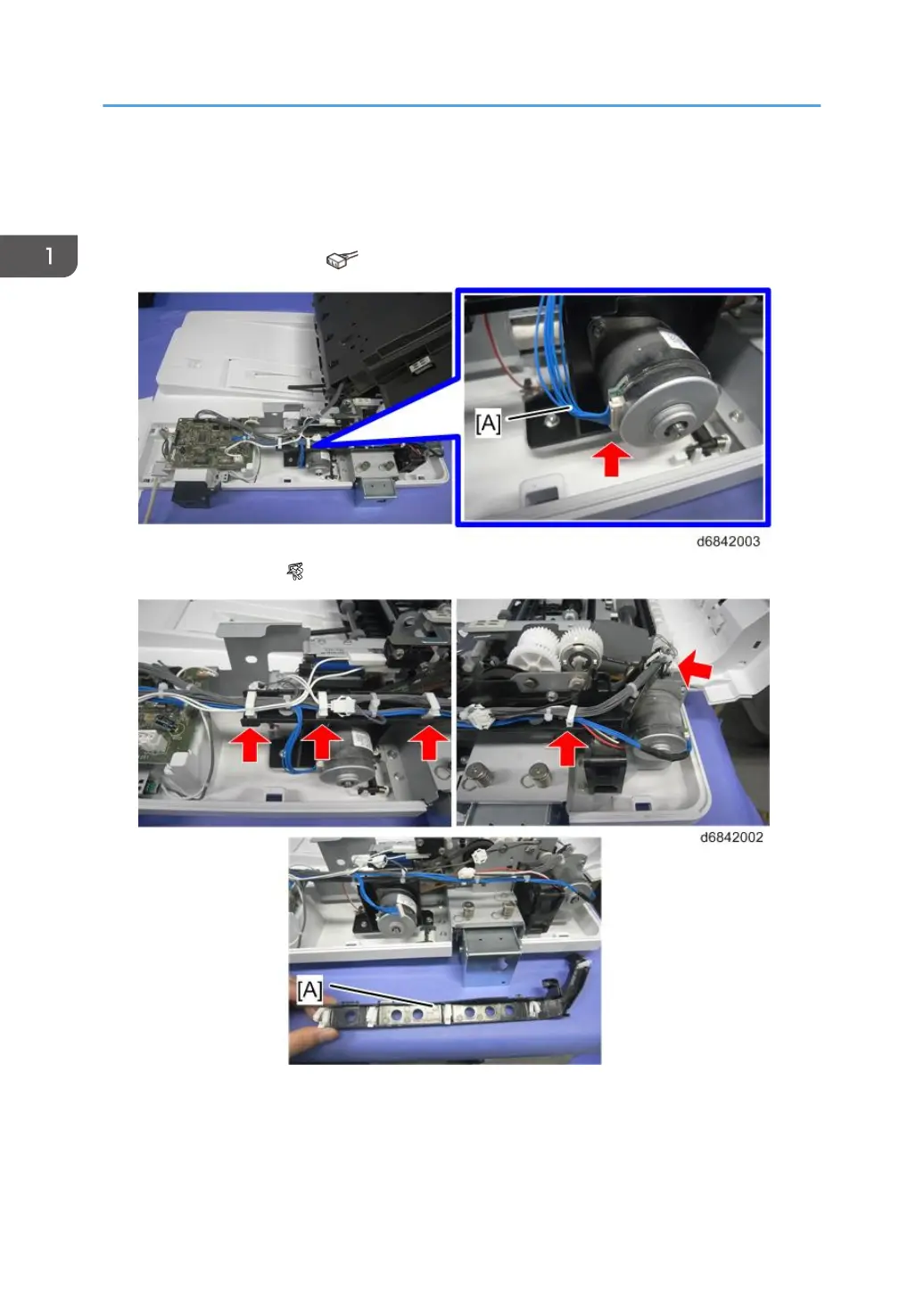

Feed Motor
1. Rear cover (page 6).
2. Feed motor harness [A] ( ×1).
3. Harness guide [A] ( ×5).
1. Replacement and Adjustment
26
