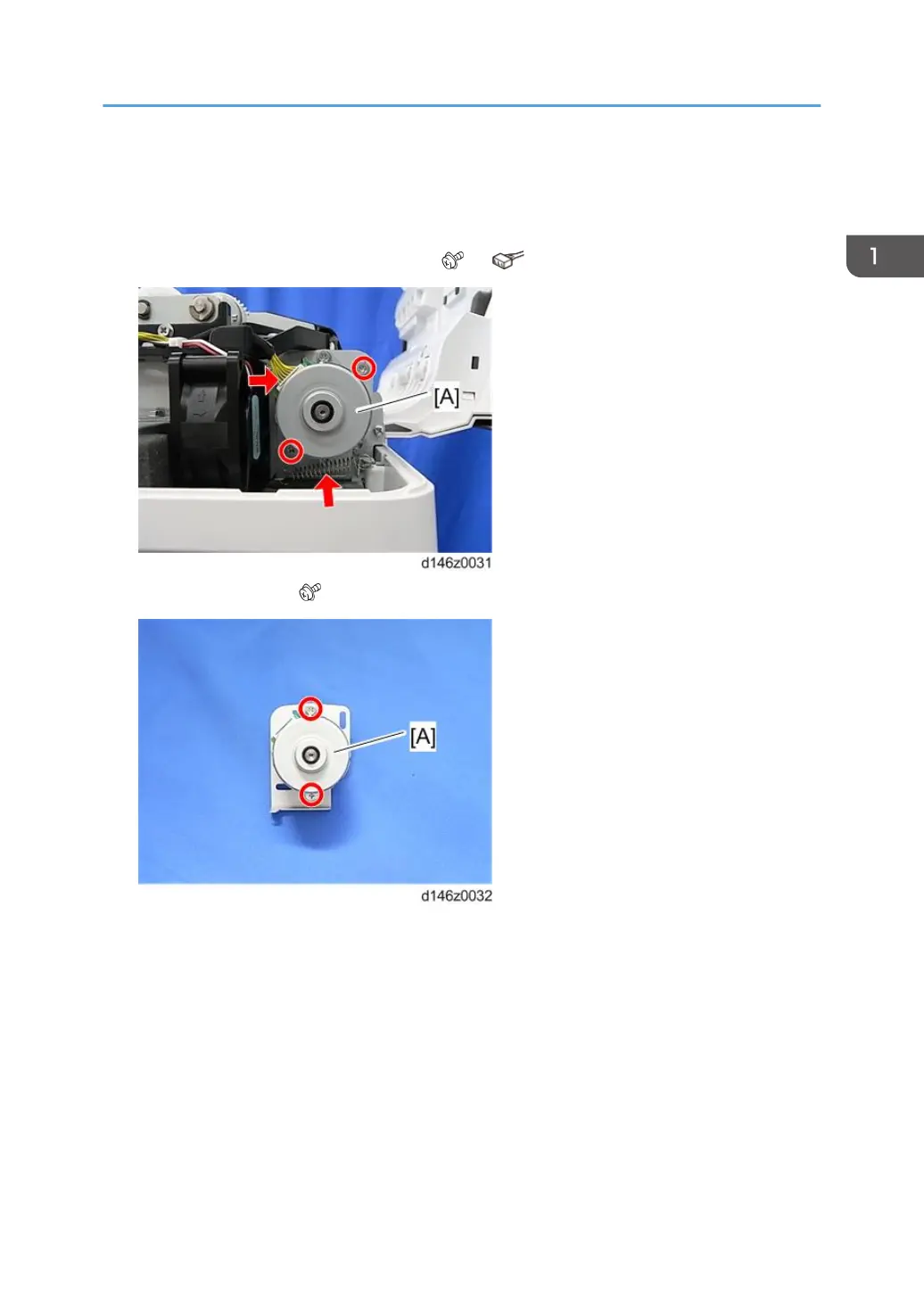

Transport Motor
1. Rear cover (page 6).
2. Transport motor bracket [A] (spring ×1, ×2, ×1).
3. Transport motor [A] ( ×2).
Transport Motor
31
