1. Replacement and Adjustment
Covers and Original Tray
DF Replacement

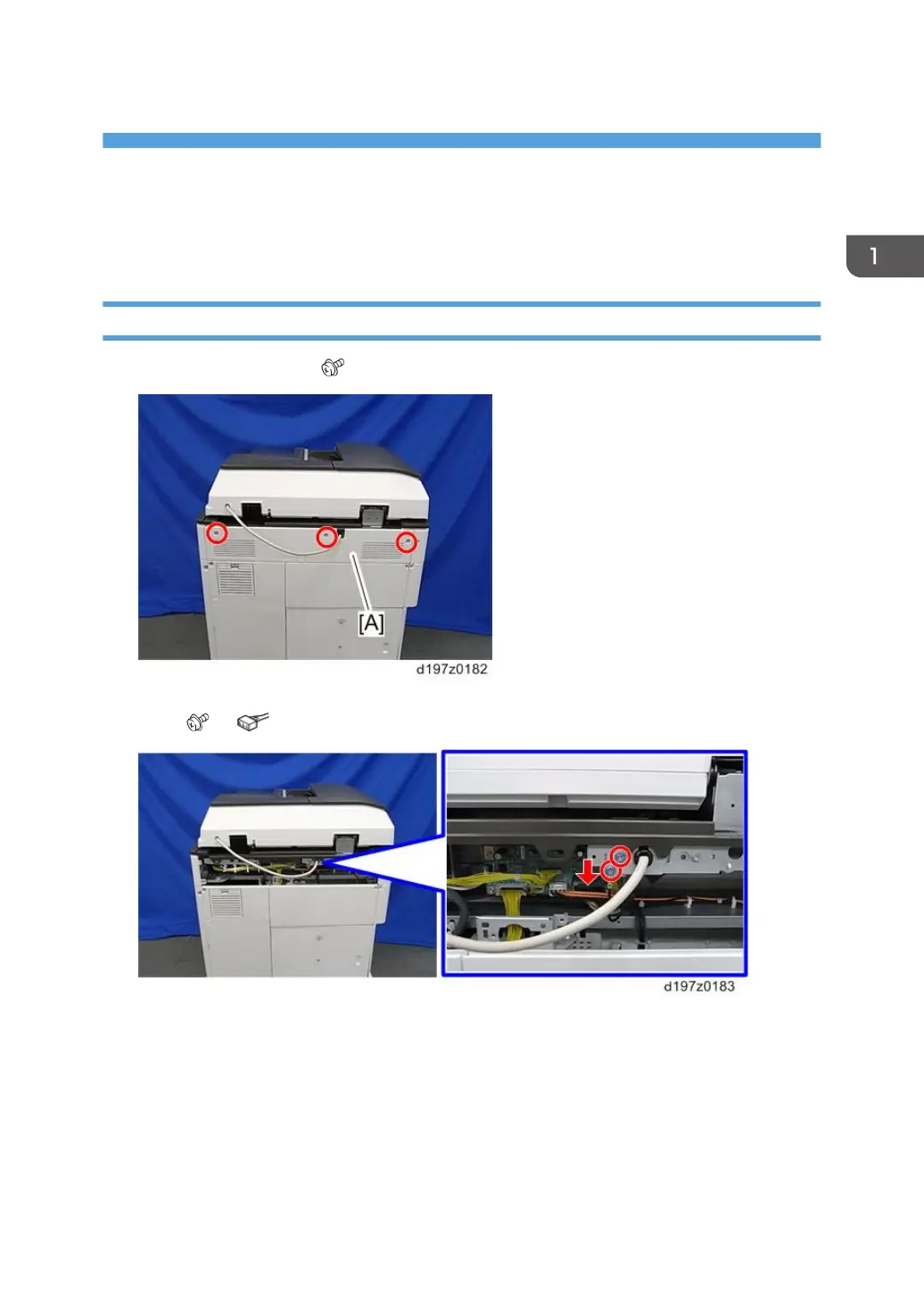

1. Scanner rear cover [A] ( ×3).
2. The screw on harness securing bracket, and then the connector and screw on the earth
plate ( ×2, ×1).
