Technical Bulletin
PAGE: 1/1
Model:
GR-C1
Date:
27-Jun-12
No.:
RD117028
Subject:
Fusing Thermistor
Prepared by:
K. Moriizumi
From:
3rd Tech Service Sect., MFP/P Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety Other ( ) Tier 2
Important Information about Replacing the Fusing Thermistor

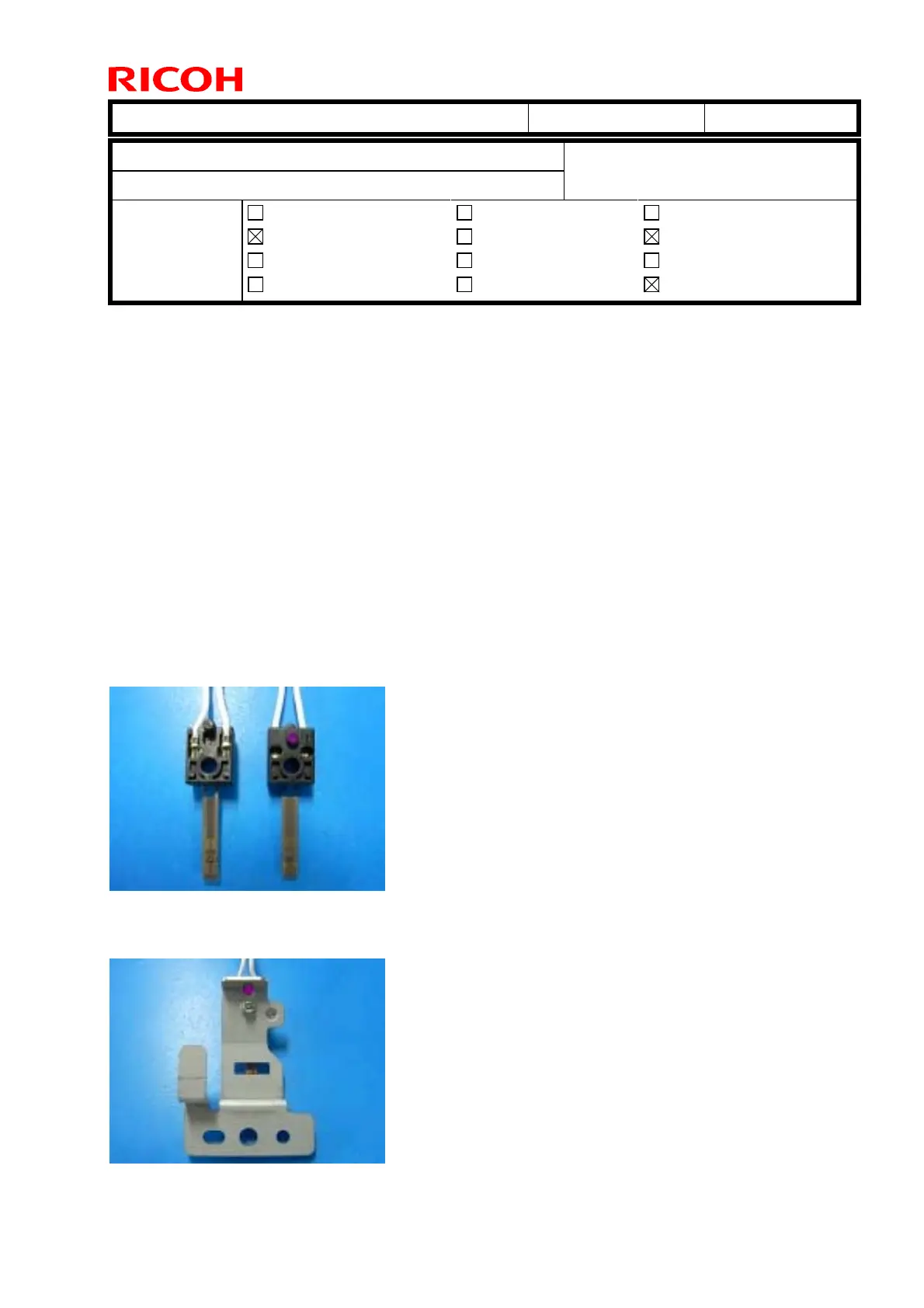

! The AW100149 fusing thermistor is marked with a pink dot. When you replace the
thermistor, make sure that this pink dot faces the bracket, as shown in the photos
below. (The dot is visible through the bracket after you attach it).
! Currently, this thermistor cannot be supplied. If you need to replace the fusing
thermistor, use the AW100147 thermistor instead. It is the same thermistor.
IMPORTANT: The AW100147 thermistor is not marked with a pink dot, so make sure
that the side of thermistor that covers the harnesses (shown in the
right side of the photo) faces the bracket.
Pink dot on AW100149:
Pink dot visible after attachment of AW100149:
