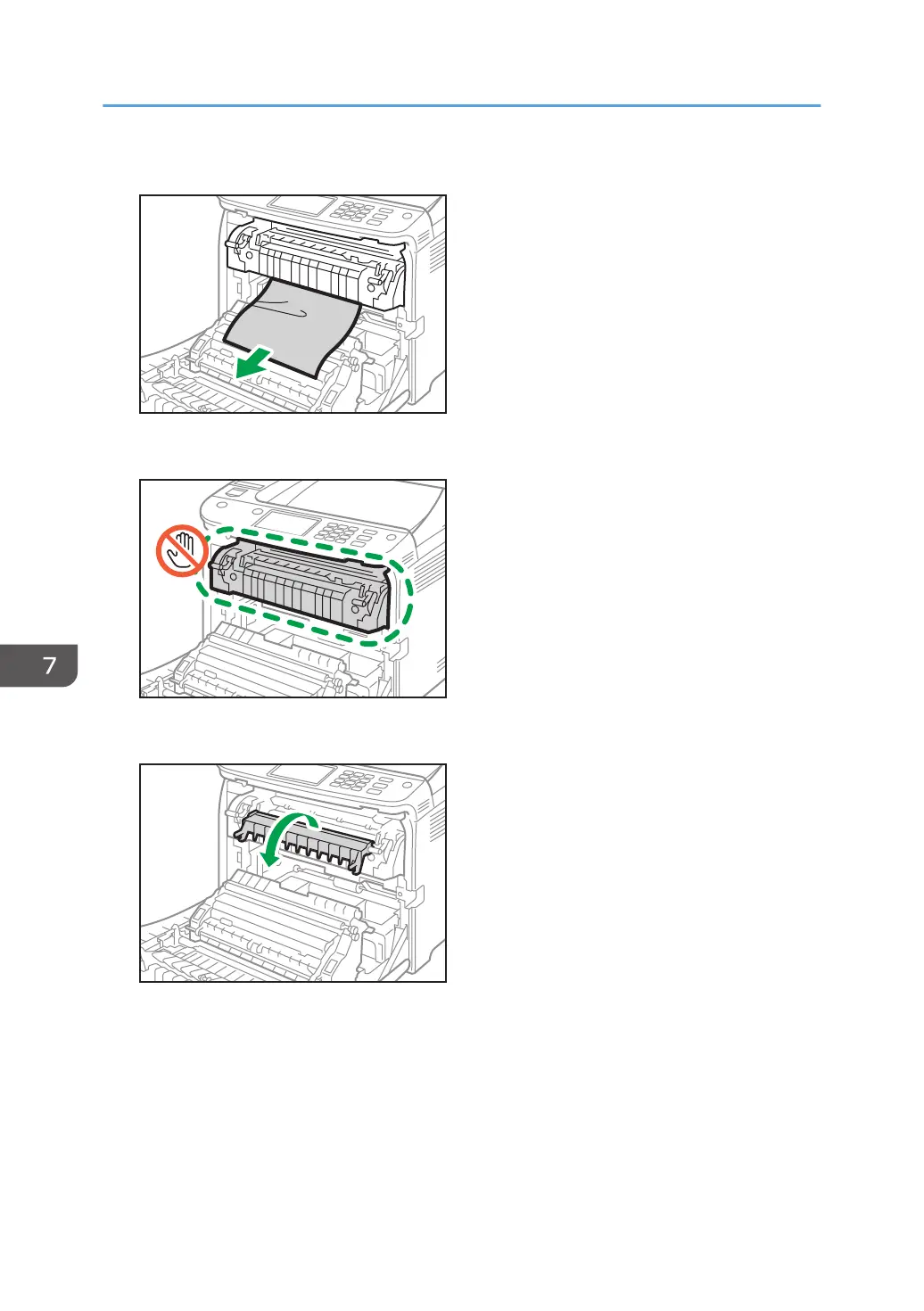

2. Pull the paper downward to remove it. Do not pull it upward.

ECC158

Do not touch the fusing unit.

ECC157

If you cannot find the jammed paper, check for it by pulling down the guide.
