Appendices
Congurations of Terminals

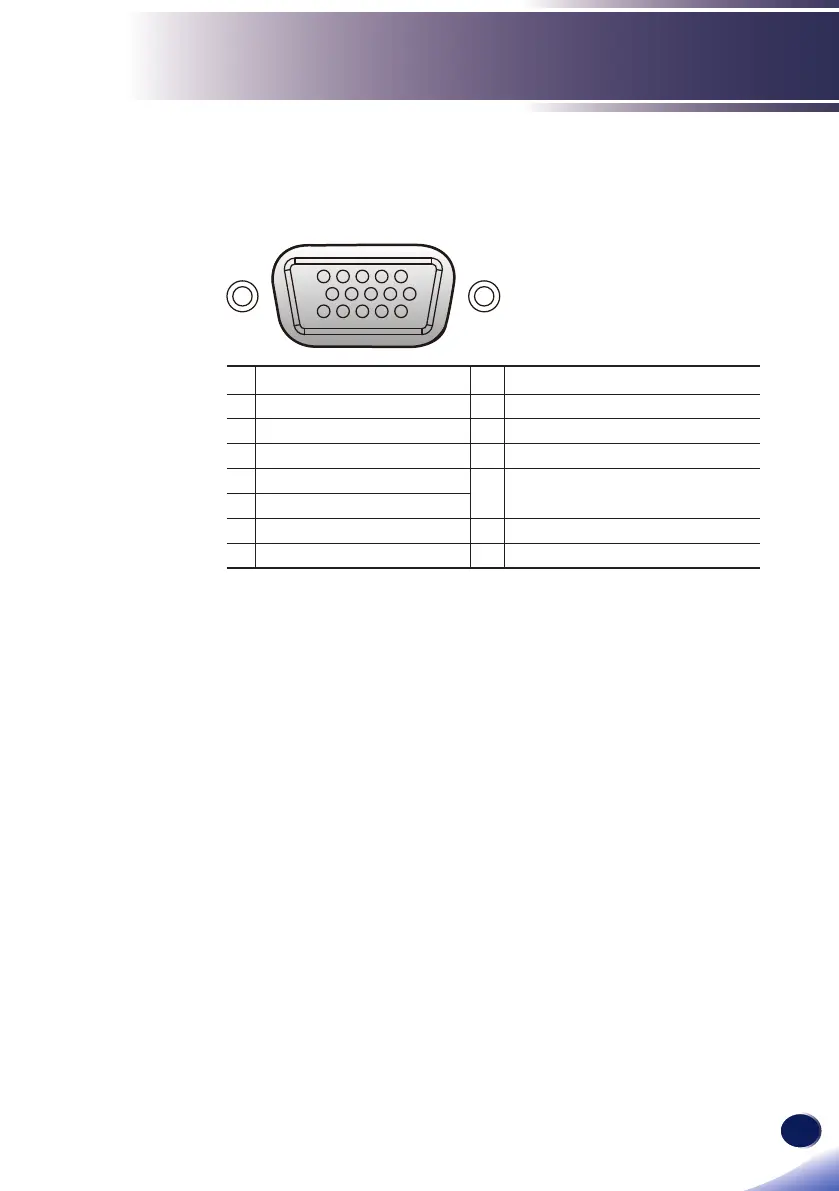

Terminal : Analog RGB (Mini D-sub 15 pin)
1
Red (R/Cr) Input/R Output
9
DDC 5V / NC
2
Green (G/Y) Input/G Output
10
Ground (Ver. sync.)
3
Blue (B/Cb) Input/B Output
11
ICP download
4
ICP download / NC
12
DDC Data / NC
5
Ground (Horiz.sync.)
13
Horiz. sync. Input / Output (Composite H/V
sync. Input)
6
Ground (Red)
7
Ground (Green)
14
Vert. sync. Input / Output
8
Ground (Blue)
15
DDC CLK / NC
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
