Ricoh Pro C7100 Technical Bulletin

Technical Bulletin PAGE: 1/5
Model: Vacuum Feed LCIT
Date: 28-Oct-15
No.: RD777004
Subject: Troubleshooting banner sheet skew
Prepared by: S. Sasaki
From: 1st Tech Service Sect., PP Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2
Tier 0.5

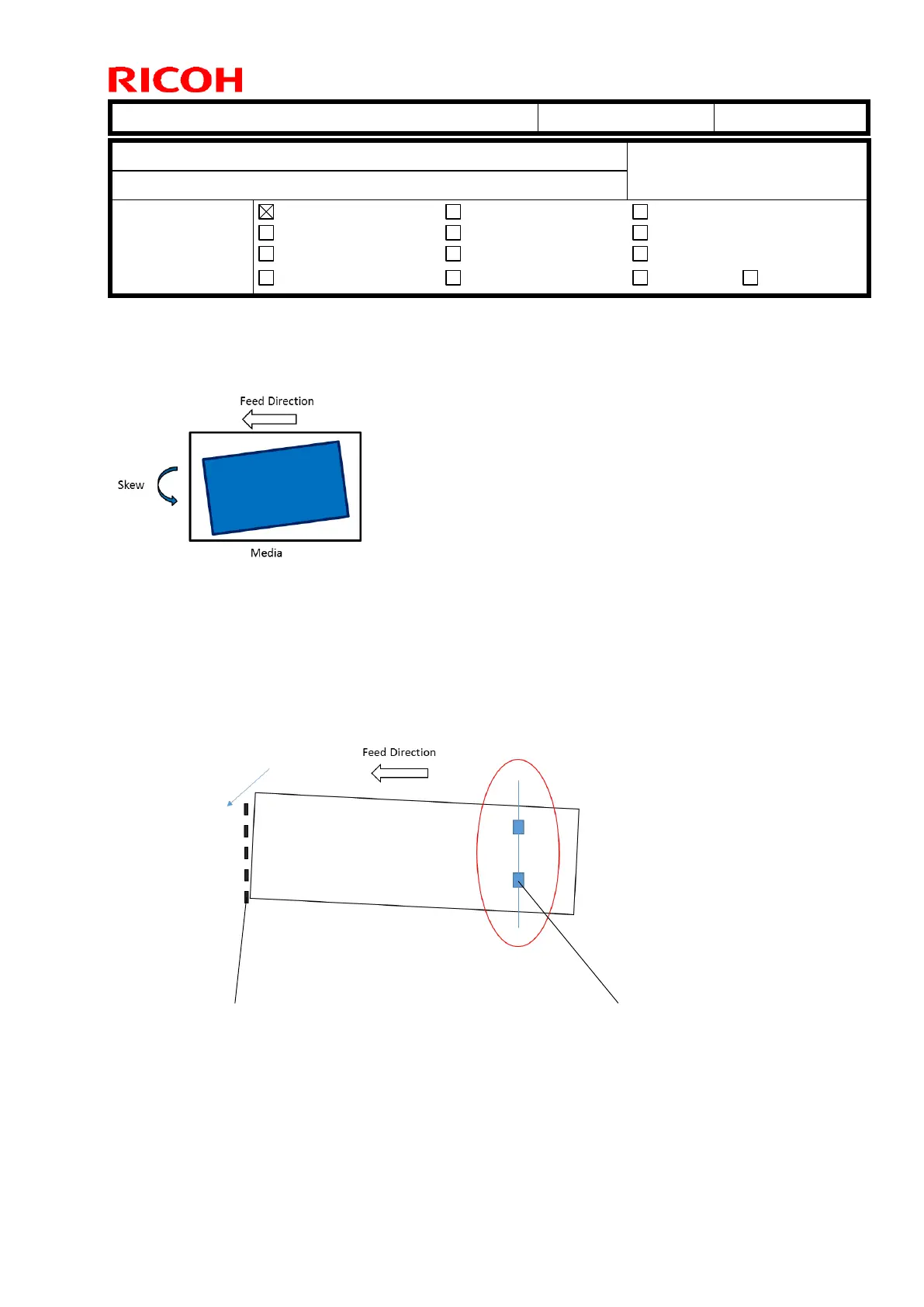

SYMPTOM
Skew occurs when a banner sheet is fed from the Vacuum Feed LCIT.
Note
Thicker paper (Weight 5 or thicker) tends to be more affected by the skew.
CAUSE
The skew of the banner sheet cannot be corrected efficiently with the skew adjustment
gate, because the trailing edge of the banner sheet is still held by rollers when the leading
edge reaches the adjustment gate.
Skew Adjustment Gate
Rollers
