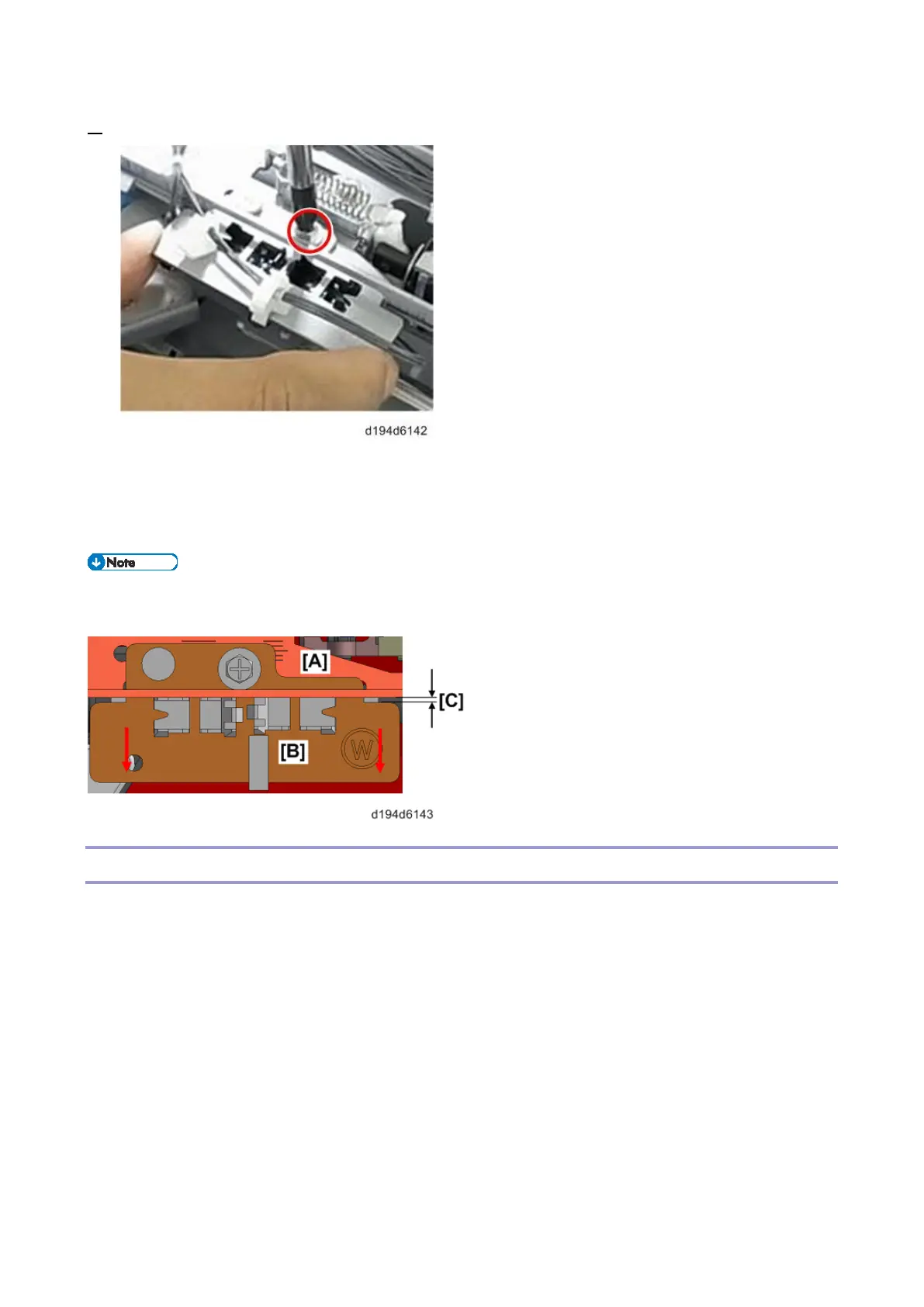

8. Adjust with the screw that holds the lift sensor bracket.
[For repeated feeding problems due to double feeding or double feeding as a bundle]
Position the paper lift sensor bracket so it increases the gap [C] between the stay [A] and the lift sensor
bracket [B] while keeping an eye on the scale on the upper part of the stay (1mm between lines).
ï‚· Positioning it at a point at a distance of 0.5mm from the position before adjustment lowers the
upper limit position about 0.8mm below the current state.
No Feeding 4 (Cover Interposer Tray)
Cause
When the wrong size of paper is fed, if failure to feed occurs due to paper slipping, it may be possible to
improve the problem feeding by individually increasing the pressure.
This is likely to occur if:
ï‚· When paper with a low coefficient of friction is fed
Solution
Add a compression spring and friction pad.
