SH-P1 Training
79
Slide 79
Fusing Entrance Guide Adjustment

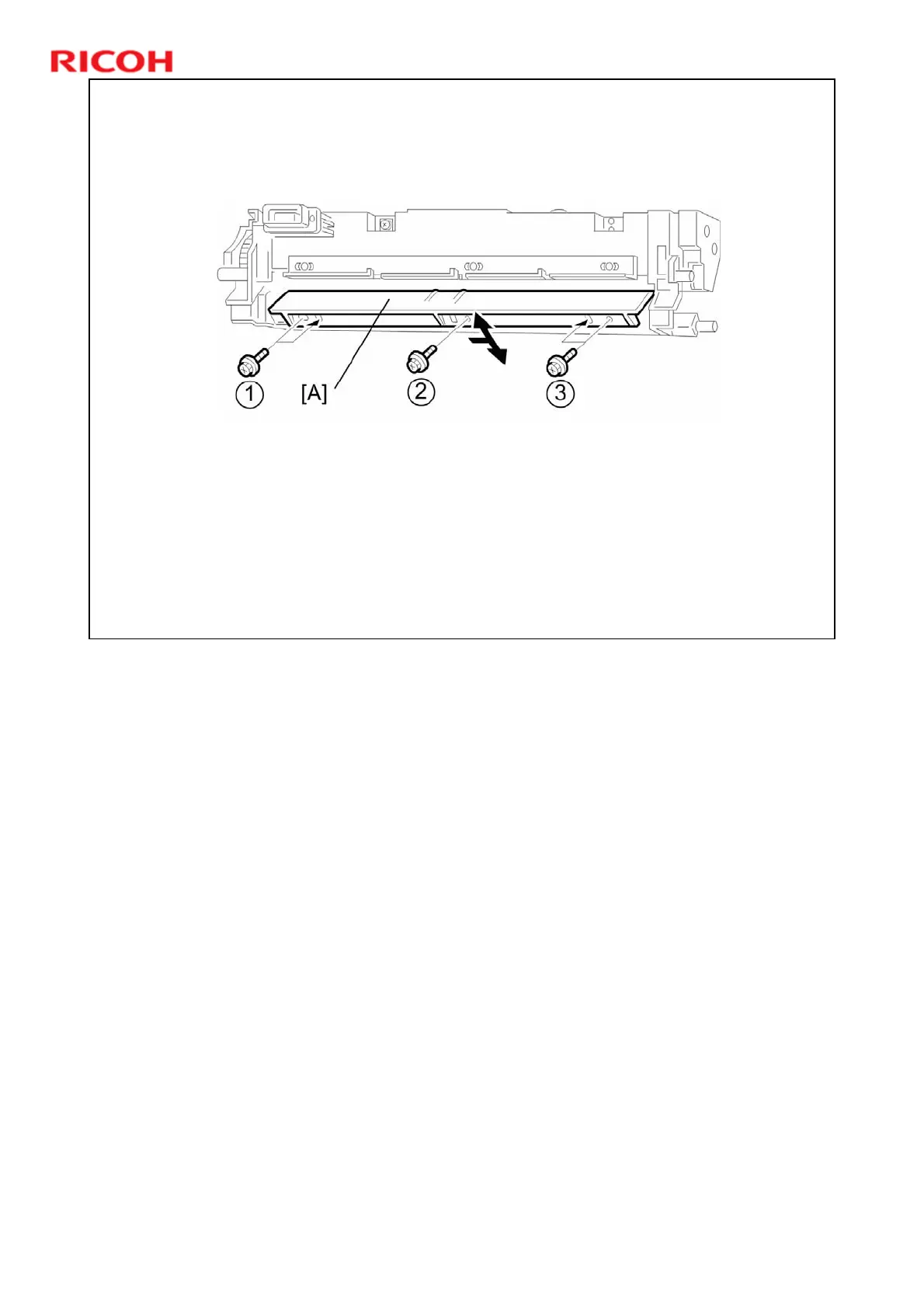

The entrance guide [A] is adjustable for paper thickness to
prevent creasing.
If creasing occurs frequently in the fusing unit, remove all three
screws and slide the entrance guide to the right. Replace the two
end screws only. Do not replace the middle screw.
This procedure allows paper to have more direct access to the
point where the hot roller and the pressure roller meet.
No additional notes.
