Ricoh SP 311DN - Pressure Roller

Fusing and Exit
SM 4-35 M154/M155/M174/M175/A0A7/M287/M0BB
Replacement
and Adjustment

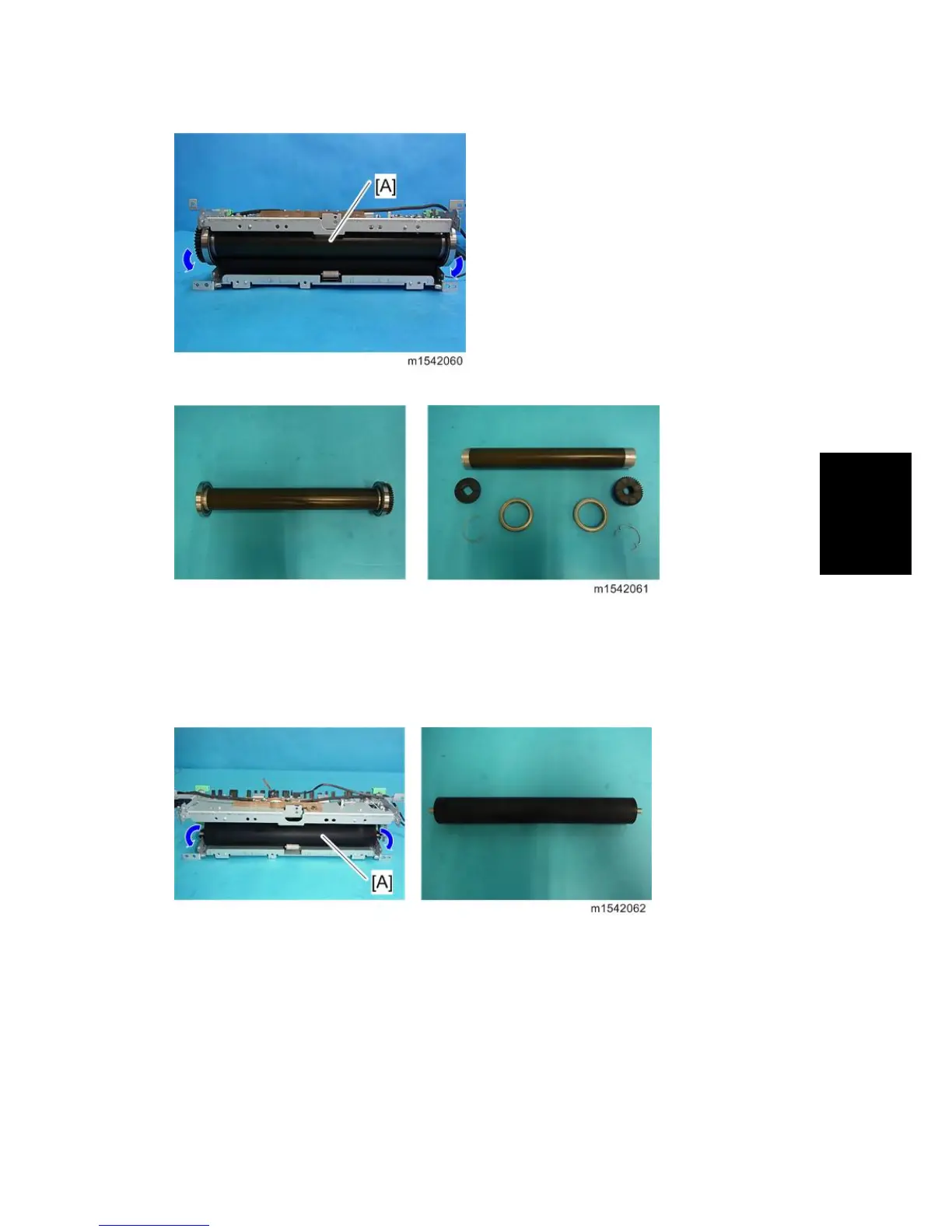

11. Hot roller [A]
12. Remove the C-ring x 2, gear x 1, cap x 1, bushing x 2 from the Hot Roller.
4.7.6 PRESSURE ROLLER
1. Hot roller (page 4-33 "Hot Roller")
2. Pressure roller [A] (Bearing x 2)
