Ricoh SP 311DN - Replacement Procedure M287;M289

Electrical Components
SM 4-47 M154/M155/M174/M175/A0A7/M287/M0BB
Replacement
and Adjustment
Replacement Procedure M287/M289
1. Pull out the standard paper tray.
2. Front cover (page 4-3 "Front Cover")
3. Rear cover (page 4-7 "Rear Cover")
4. Right cover (page 4-8 "Right Cover")

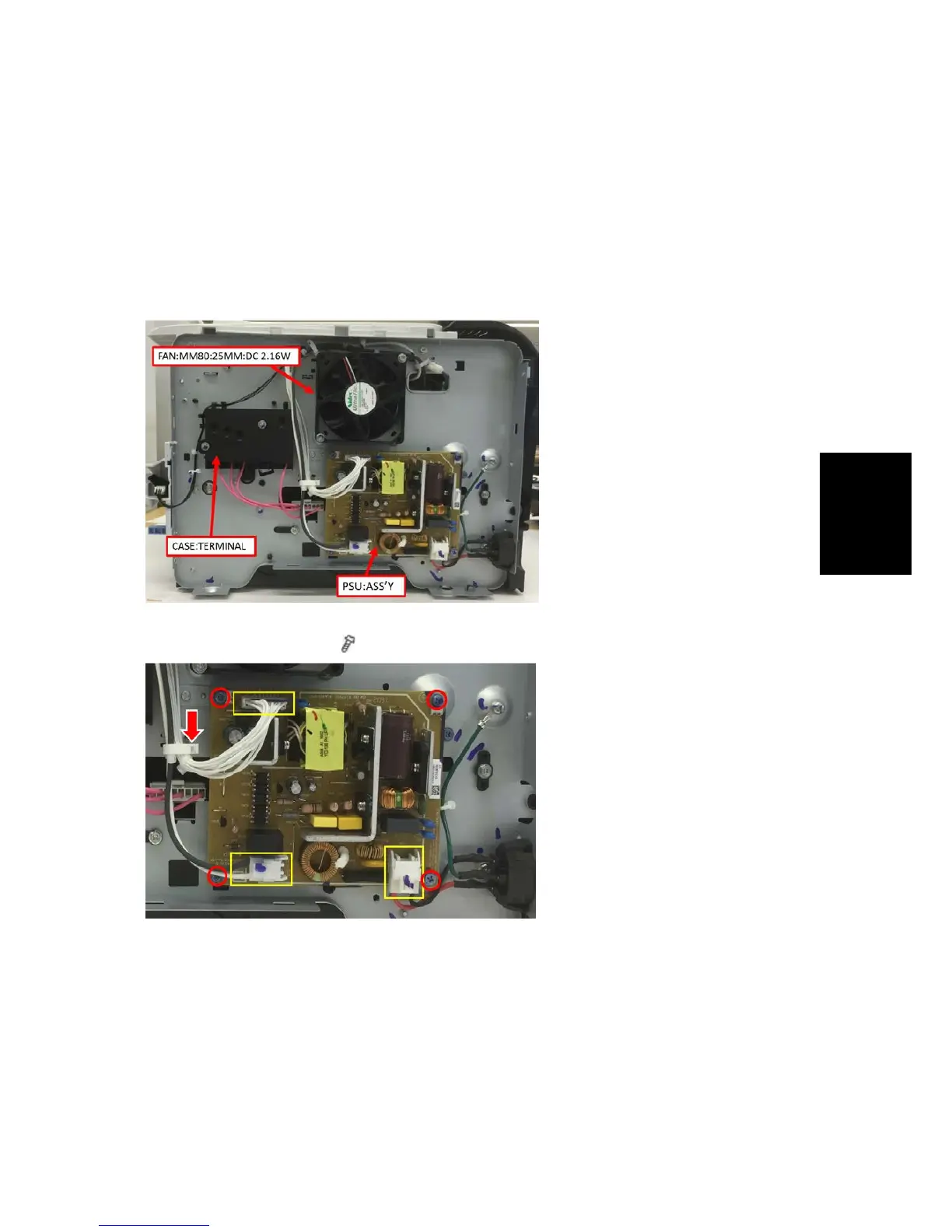

[Right side after taking the Right cover]
5. Remove the PSU:ASS’Y. ( ×4, harness x3, clamp x1)
