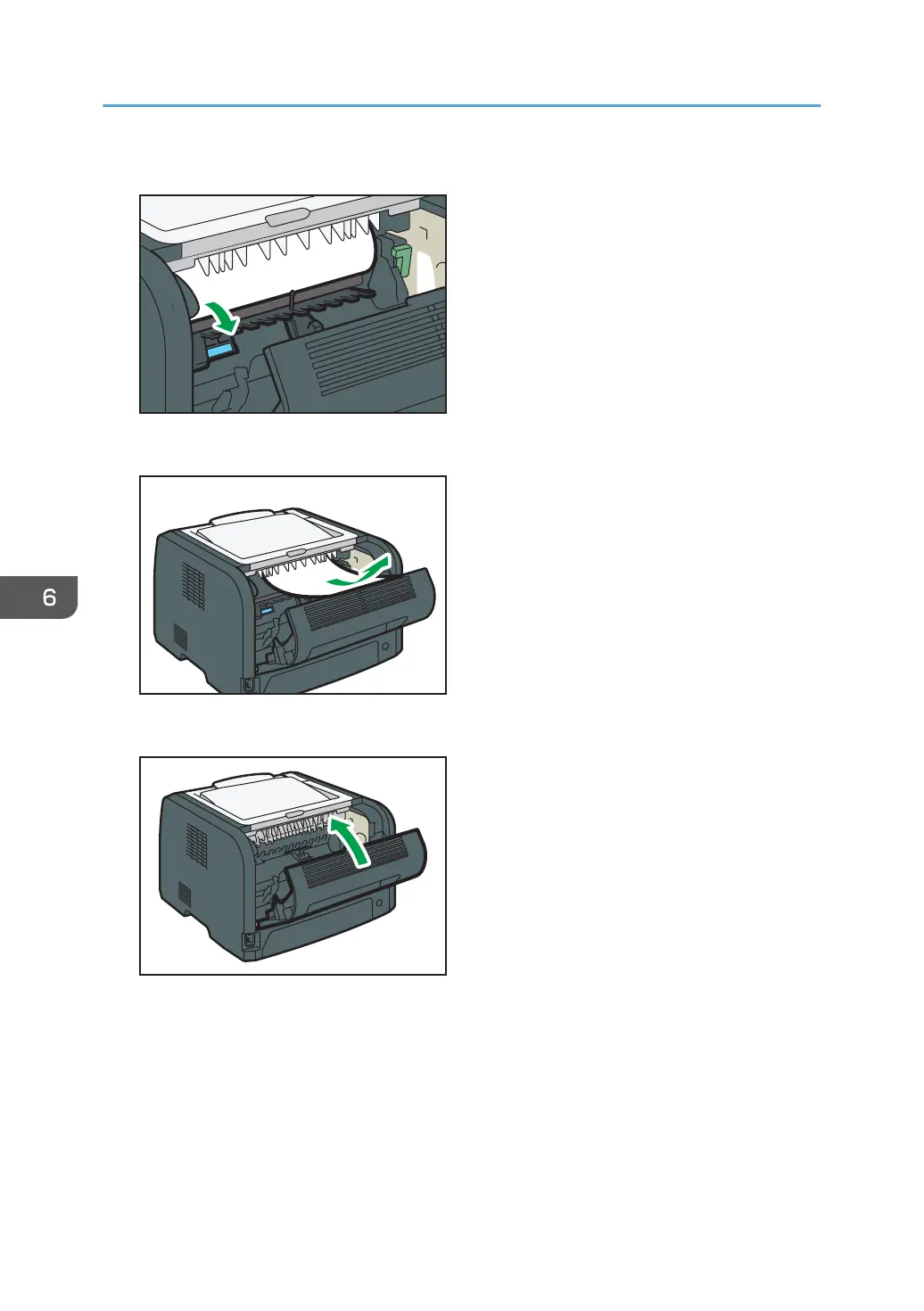

2. Hold down the B lever.

DSG227

3. Remove the jammed paper carefully.

DSG228

4. Close the rear cover.

DSG231
