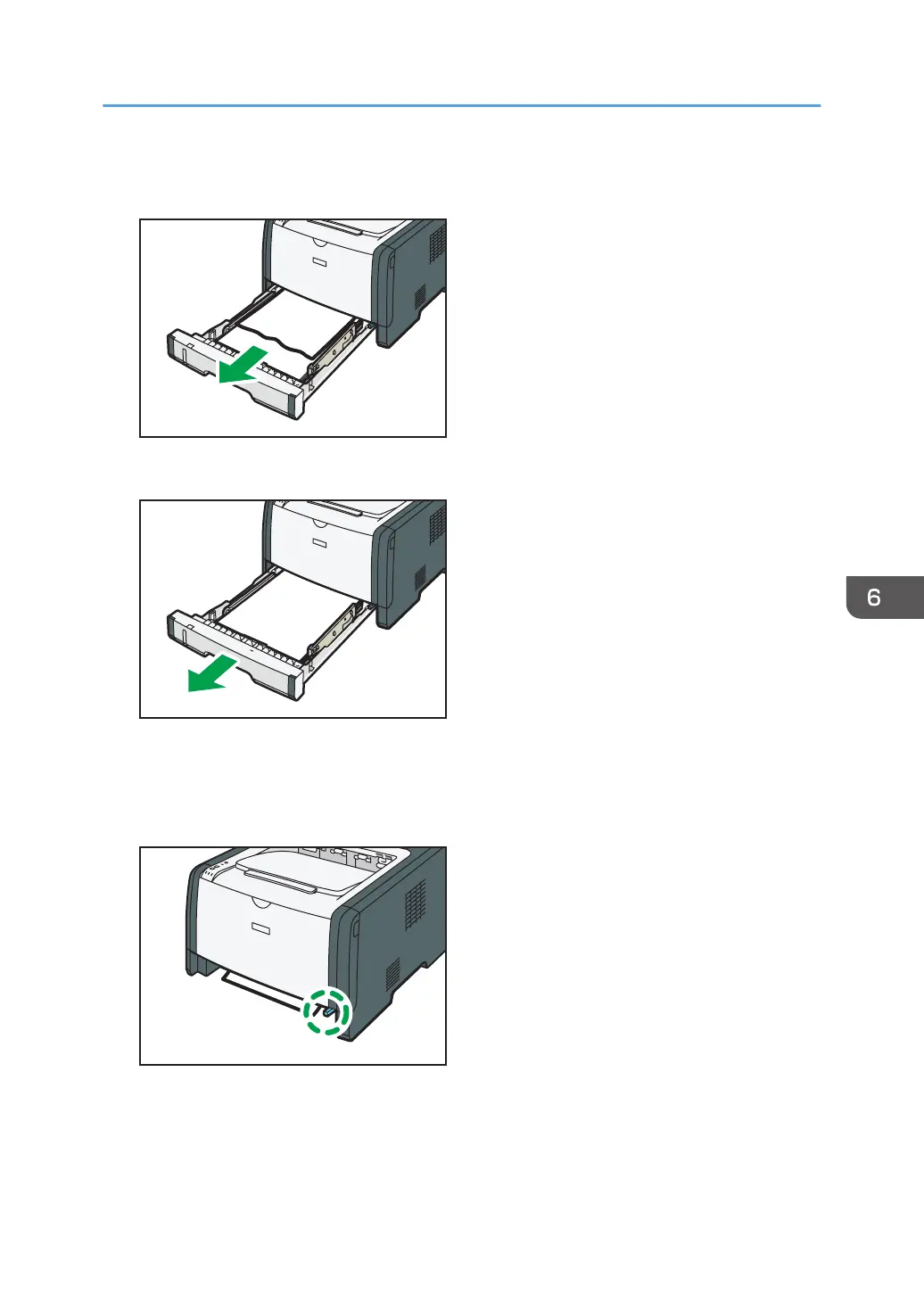

5. Pull tray 1 halfway out, and check for jammed paper. If there is jammed paper, remove it

carefully.

DSG223

6. Pull tray 1 out completely with both hands.

DSG233

Place the tray on a flat surface.

7. Push the lever.

Pushing the lever lowers the duplex transport unit.

DSG234

Clearing Misfeeds
