Paper Feed
M0C3/M0C4/M0C5/M0C6/M0C7 4-48 SM

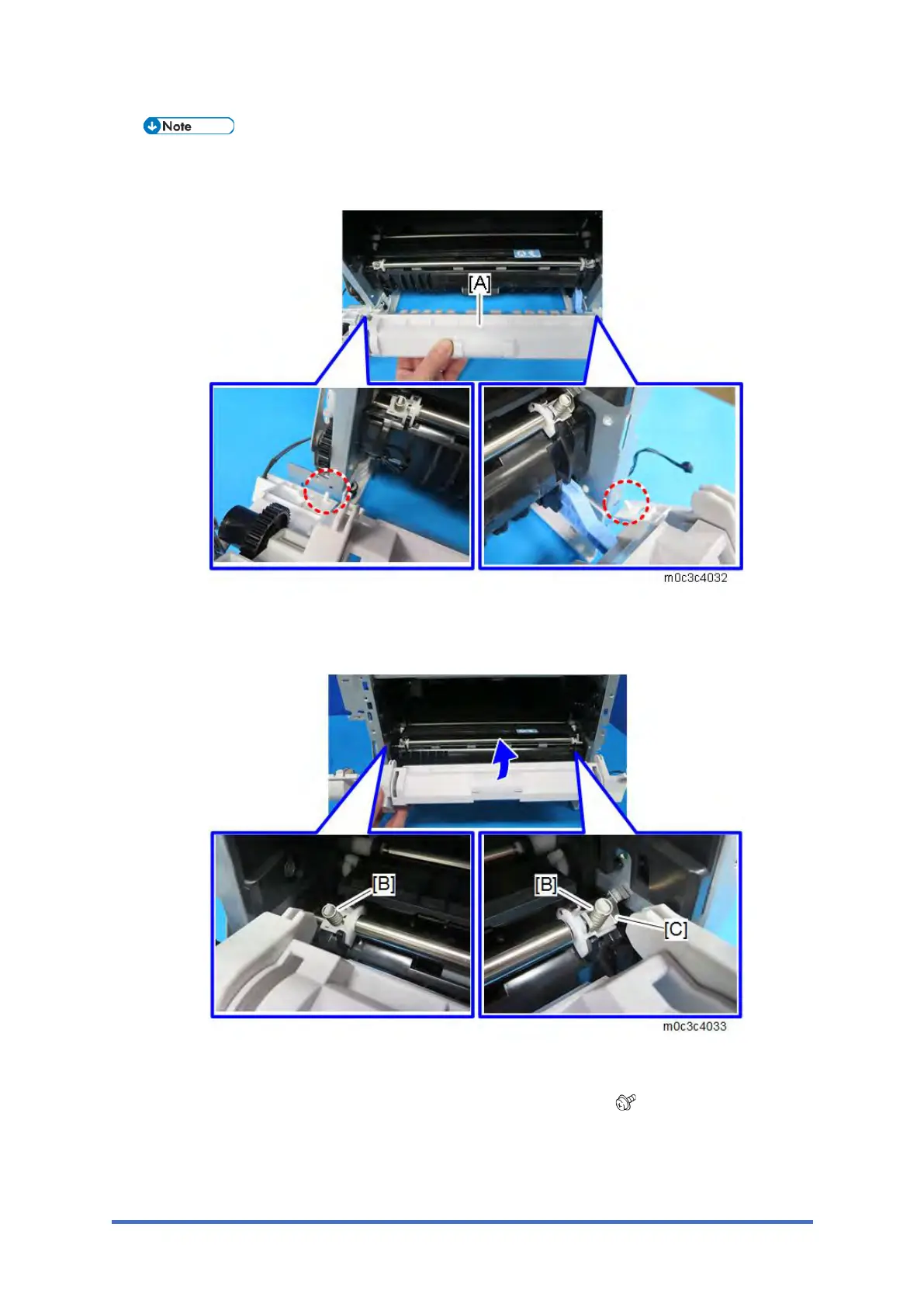

• When re-installing the by-pass lower guide plate [A], align the lower pins with the
hole in the frame, and then attach the upper hooks.
• Be careful that the springs [B] and the ground plate [C] do not fall inside the
machine during re-installation.
4. Remove the by-pass upper guide plate [A].
5. Remove the by-pass solenoid cover, and the by-pass solenoid [B] (
x 1).
