Paper Feed
SM 4-53 M0C3/M0C4/M0C5/M0C6/M0C7
and

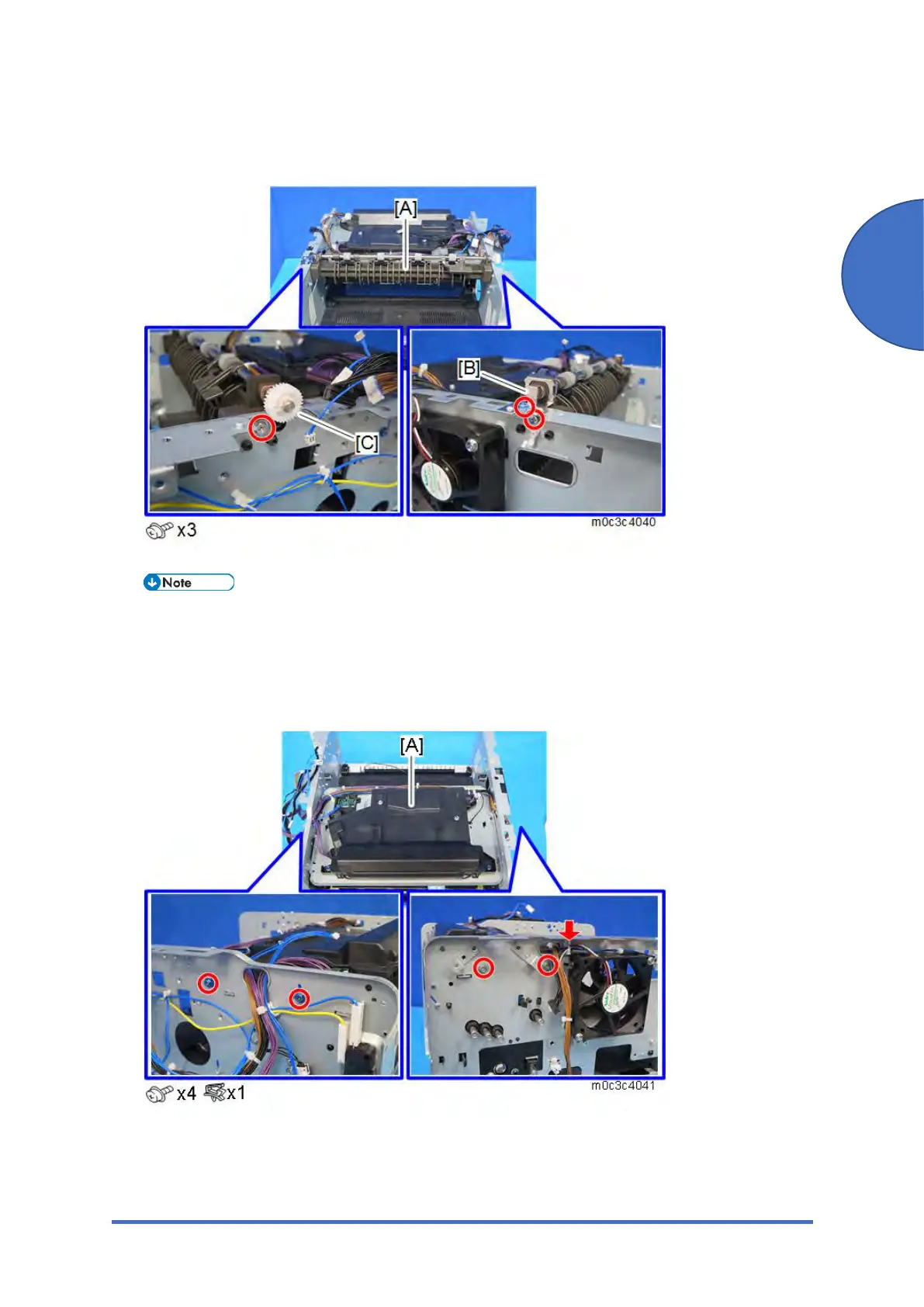

13. Slightly flex the side frames outward, and remove the exit roller base [A] and grounding
plate [B].
When re-installing the exit roller base, remove the gear [C] temporarily so that it does not
get damaged.
14. Pass the harnesses through the hole inside the machine.
15. Slightly flex the side frames outward, and remove the laser unit base [A].
To Next Page
