Guide to Names and Functions of Components
• Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal
components.

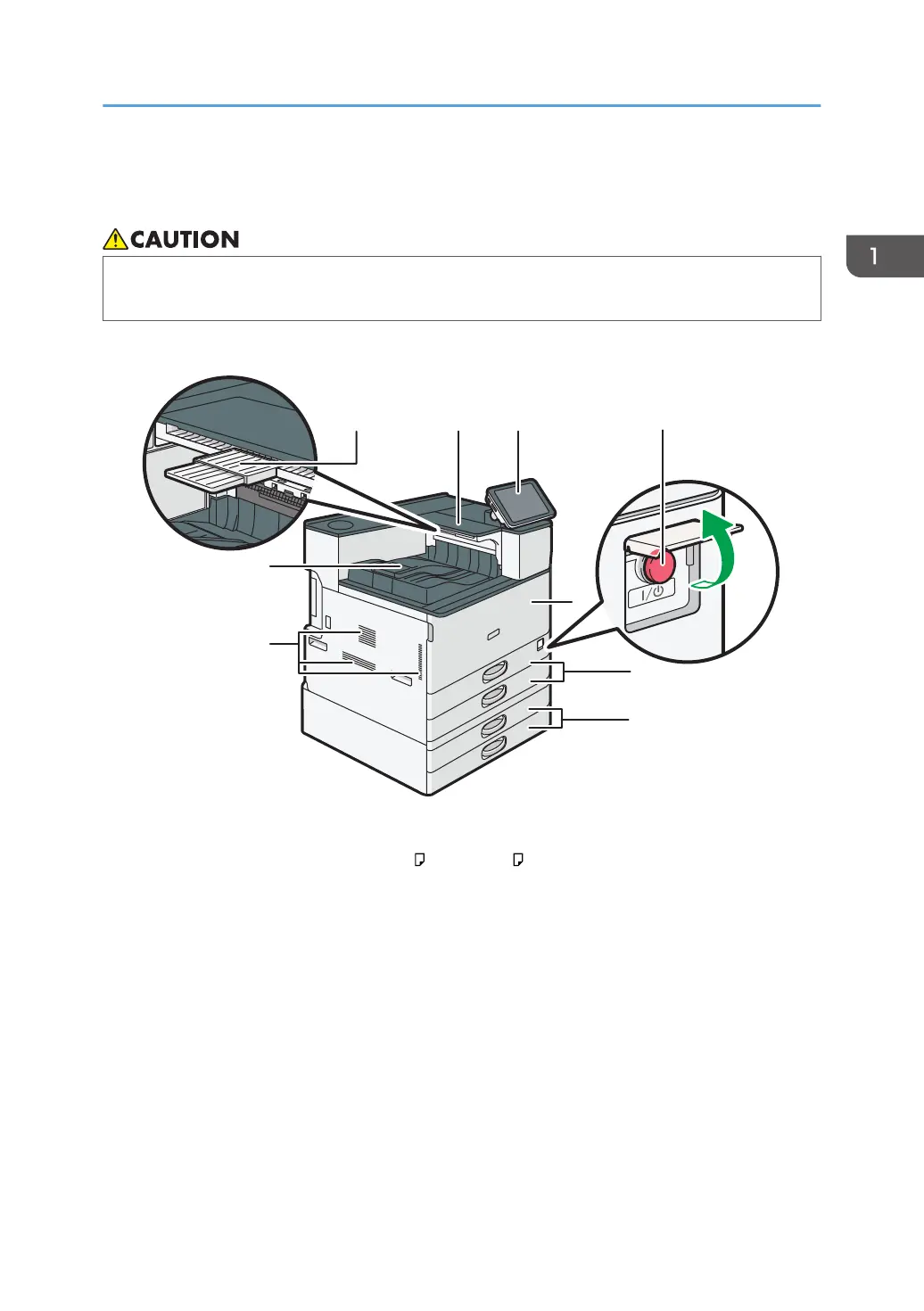

Front and left view
1. Auxiliary Tray on the Paper Reversal Location
Pull this tray to print on paper larger than A4 or 8
1
/
2
× 11 .
2. Paper Reversal Location
This area is used to reverse pages that are printed on both sides.
3. Control panel
See page 19 "Guide to the Names and Functions of the Machine's Control Panel".
4. Main power switch
To operate the machine, the main power switch must be on. If it is off, open the main power switch's cover and
turn the switch on.
5. Front cover
Open to access the inside of the machine.
6. Paper trays (Trays 1–2)
Load paper here. For details, see page 43 "Loading Paper".
