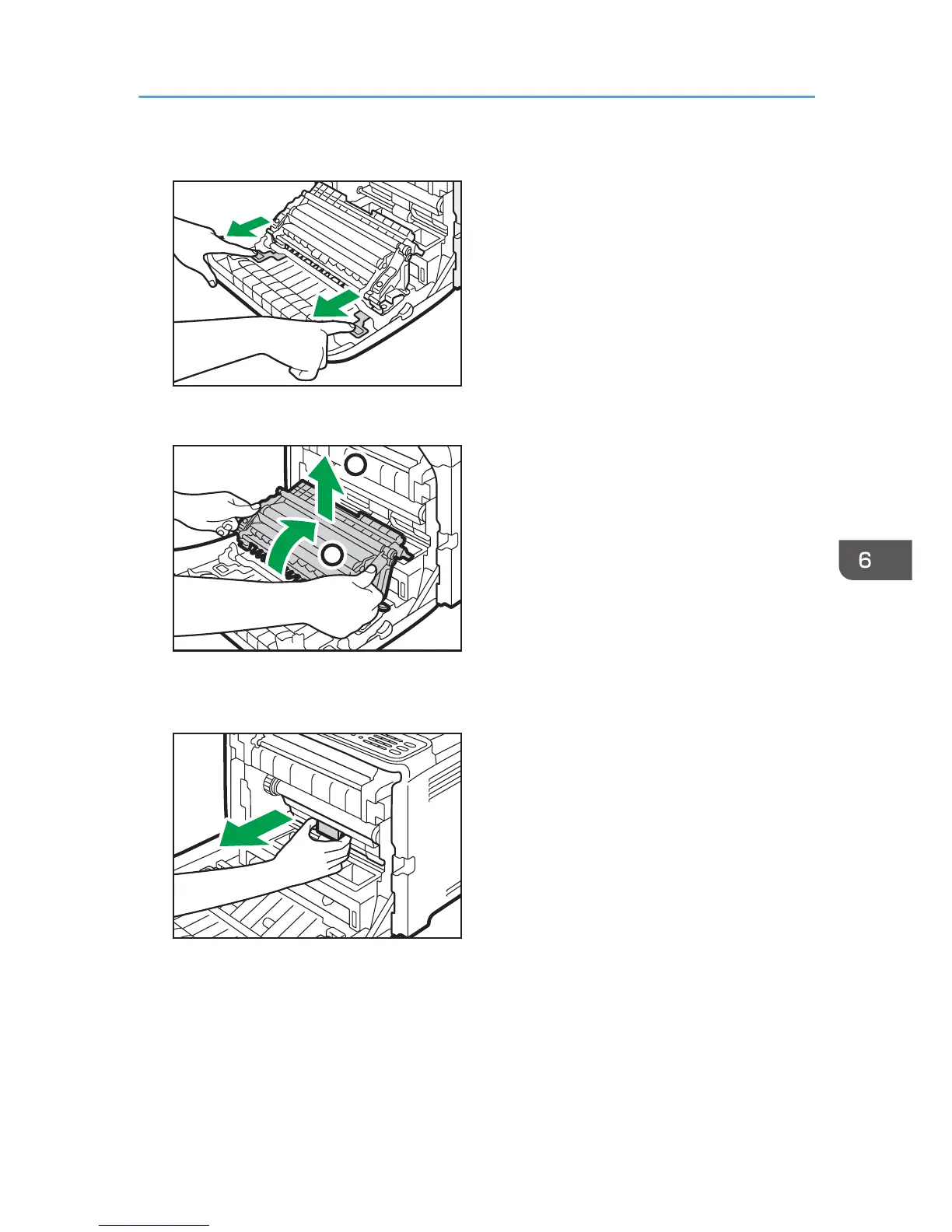

2. Slide both levers on the front cover forward.
DAC089
3. Holding the tabs on both ends of the transfer unit, tilt it backwards and lift it up.
2
1
DAC088
4. Holding the handle at the center of the waste toner bottle, carefully pull it partially out
without tilting it.
DAC076
Replacing the Waste Toner Bottle
