2.

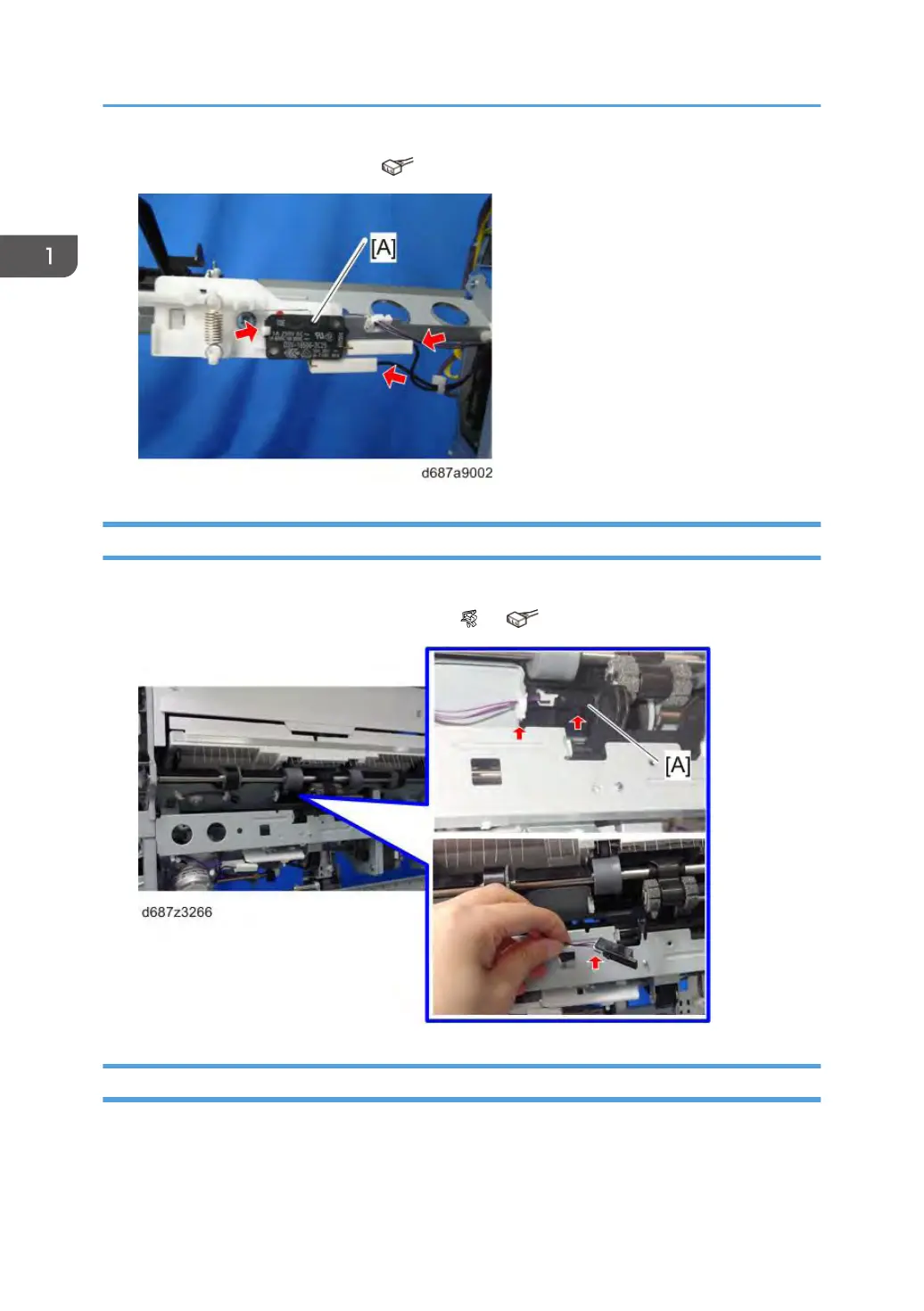

Shift tray upper limit switch [A] (
x2, hook × 1)
Shift Tray Paper Eject Sensor
1.
Left center cover (
page 15
)
2.
Shift tray paper eject sensor [A] (hook ×1,
x1,
×1)
Proof Transport Motor
1.
Rear cover (
page 9
)
1. Replacement and Adjustment
24
25
27
