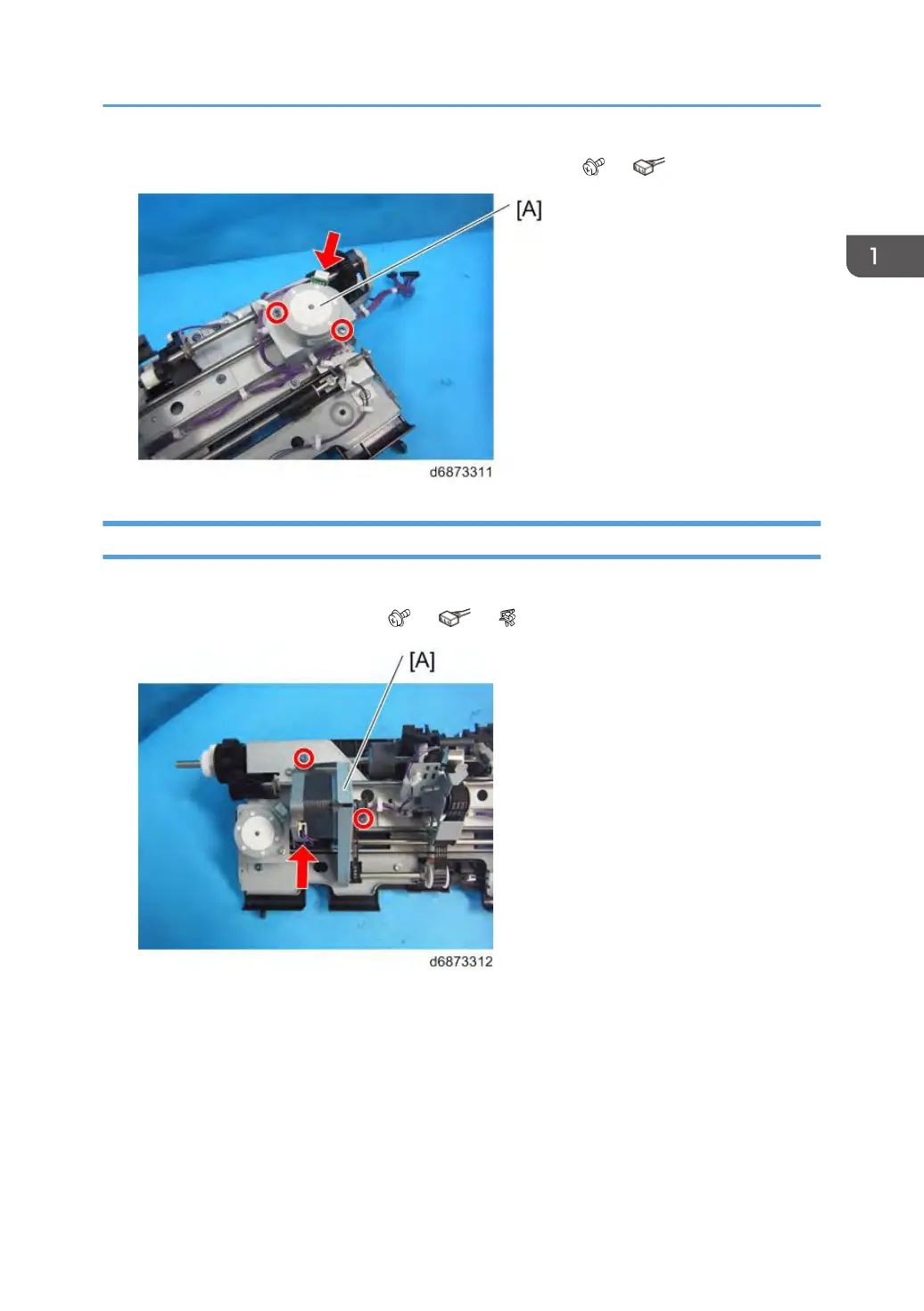

2. Paper bundle transport upper pressure release motor [A] ( ×2, ×1)
Release Claw Motor
1. Stapler tray (page 29)
2. Release claw motor bracket [A] ( ×2, ×1, ×2)
Main Unit
35
