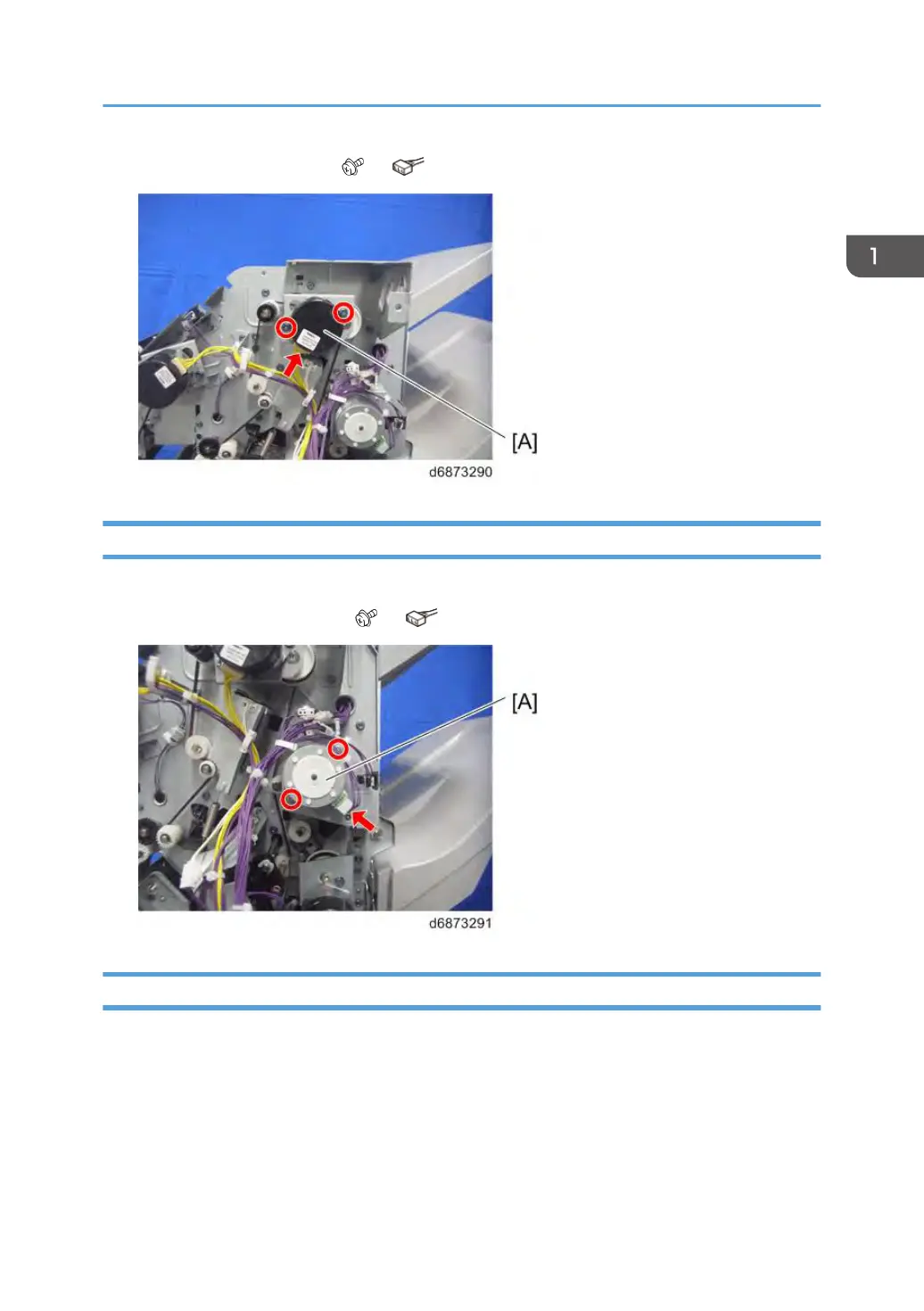

2. Proof transport motor [A] ( ×2, ×1)
Positioning Roller Motor
1. Rear cover (page 9)
2. Positioning roller motor [A] ( ×2, ×1)
Shift Motor
1. Rear cover (page 9)
