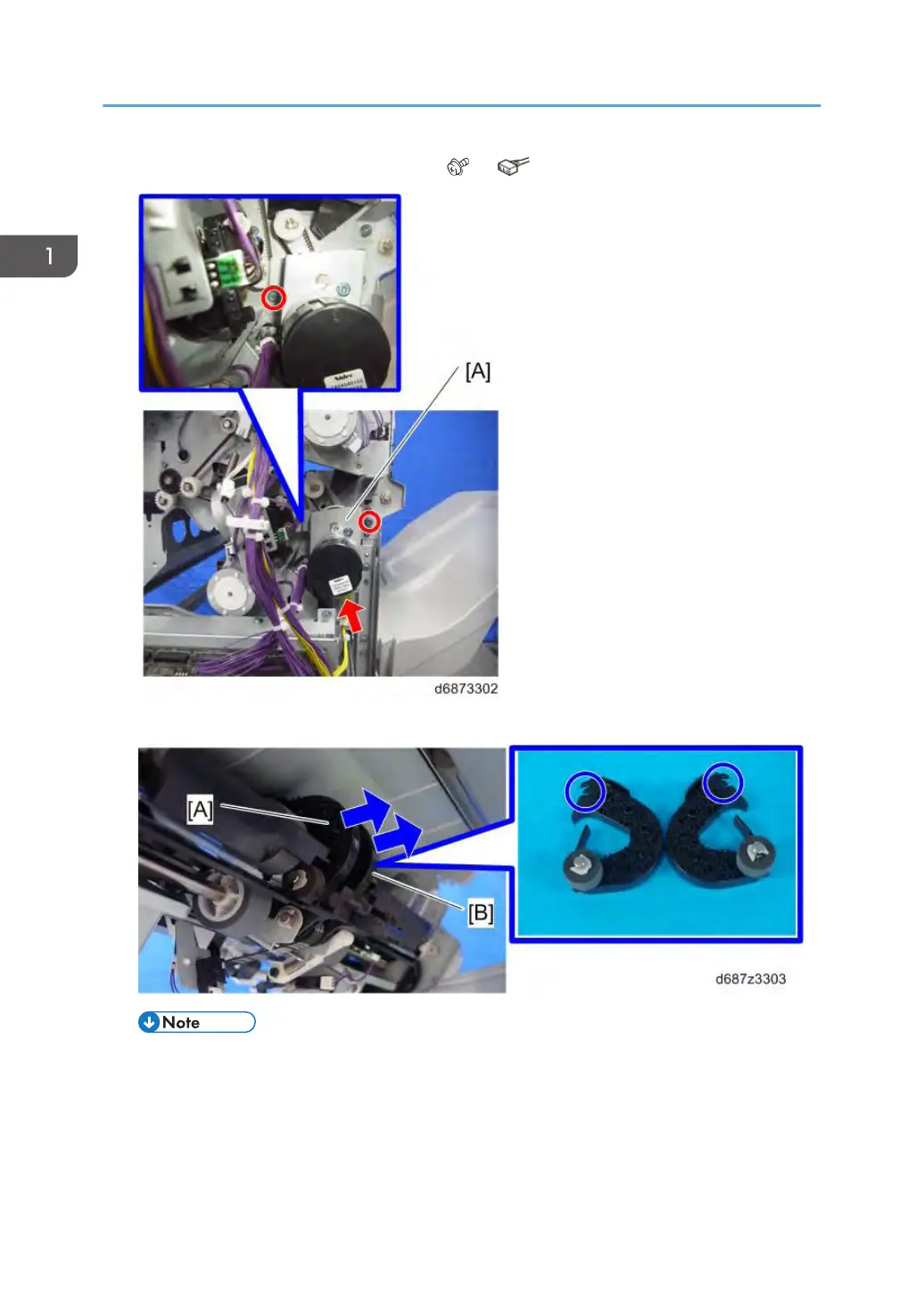

4. Paper eject transport motor bracket [A] ( ×2, ×1)
5. Approach roller (front) [A], approach roller (rear) [B]
• Be careful not to damage the shape of the claw enclosed by the blue circle when removing
the approach rollers.
1. Replacement and Adjustment
30
