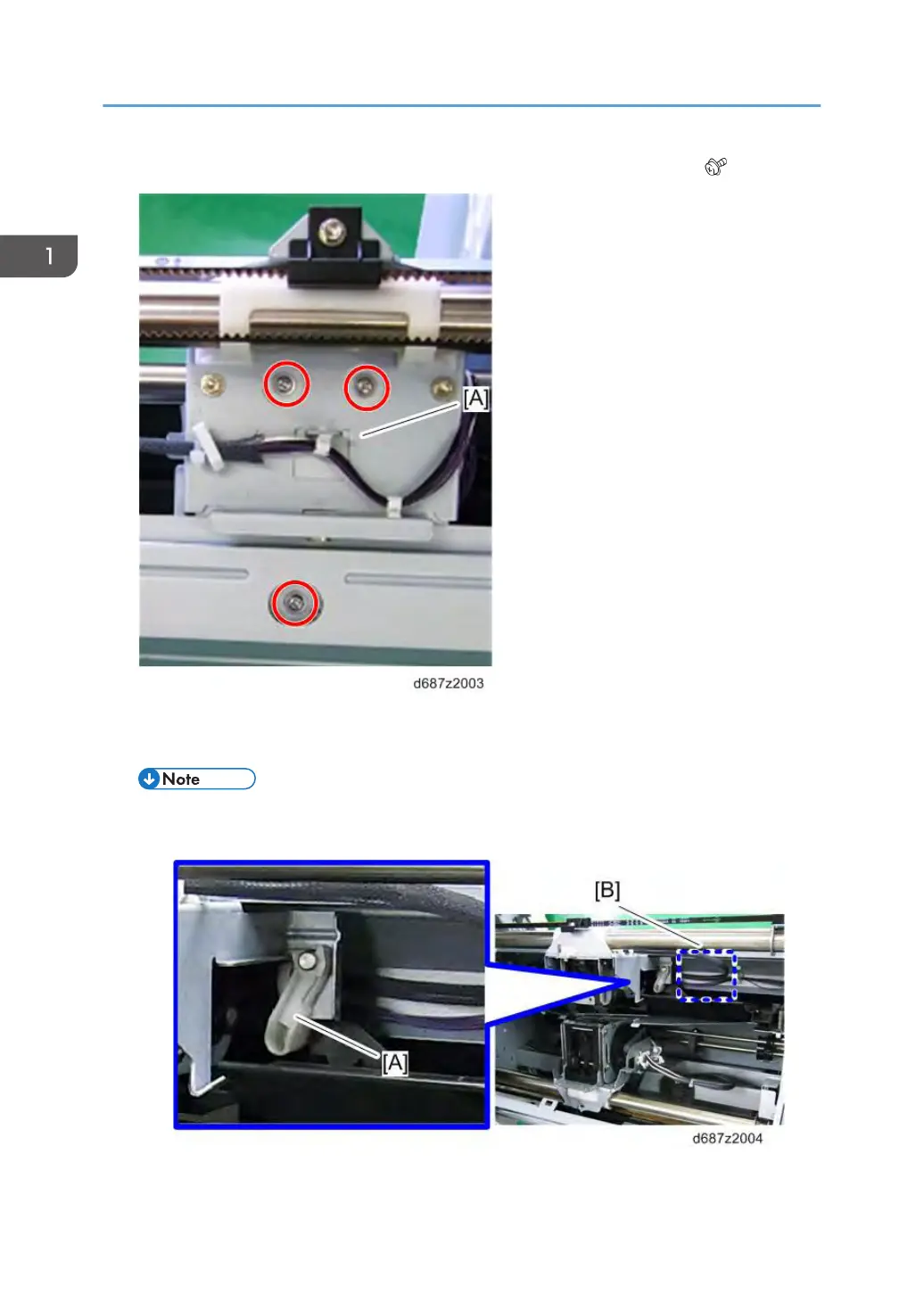

14. Tighten the screws completely to secure the clincher side [A] of the stapler ( ×3).
15. Loosen the wing screw to remove the special tool.
16. Reattach all the removed parts.
• Make sure that the harnesses [B] are routed behind the resin part [A]. Otherwise, the
harnesses block the route of the stapler, which causes a stapler transfer motor error.
1. Replacement and Adjustment
