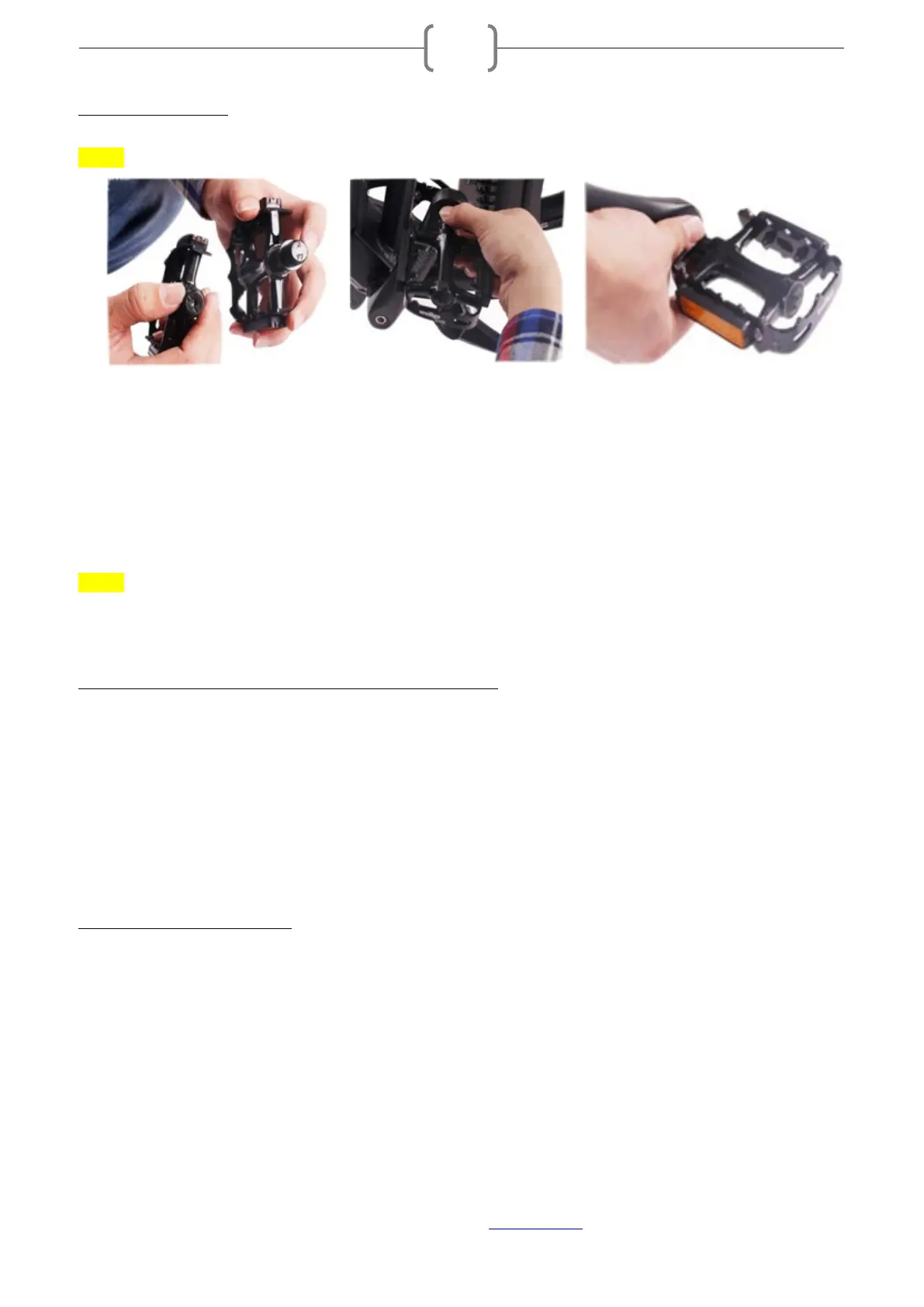

3.4 Pedal Assembly:
NOTE: ◆ THE LEFT AND RIGHT PEDALS ARE UNIQUE.
• The left pedal (marked “L”) must be installed in the left crank arm. It is reverse thread, rotate
counterclockwise to install and tighten.
• Screw each pedal into a crank by hand. They should screw in easily to start. Do not force them.
• The right pedal (marked “R”) must be installed in the right crank arm. It is standard thread, rotate
clockwise to install and tighten.
• Use a wrench no wider than the flats on pedals to finish tightening the pedals in place.
NOTE: ◆ THERE ARE TWO PEDALS INCLUDED IN THE BOX WITH YOUR BIKE. THE PEDALS SCREW INTO
THE ENDS OF THE CRANKS WITHOUT EXTRA NUTS, SCREWS OR PINS. FAILURE TO USE THE CORRECT
PEDAL ON THE CORRECT SIDE WILL RESULT IN A STRIPPED CRANK ARM.
3.5 Air Fork Operation (ONLY ON PRODIGY XC VERSION):
The top left of the fork crown is the air valve. Use a shock pump to reach the desired amount of stiffness or
sag. DO NOT USE A BICYCLE TIRE PUMP. You may damage the air fork. The acceptable PSI range is from
40-120 PSI based on rider weight and preference. For more information, please check our support page at
www.Ride1UP.com
The dial on the top right is a lockout. Turning this to the locked position will lock the fork from compressing
and in this mode, it acts as a rigid fork. This is for climbing hills, or riding on smoother roads.
3.6 Detailed Torque Settings:
• Saddle Clamp Bolts: refer to torque specs on seat post.
• Crank Arms: 39nm (pre-installed).
• Handlebar Clamp: Refer to torque specs on stem. Tighten evenly in a cross pattern so the gap at
each bolt is the same.
