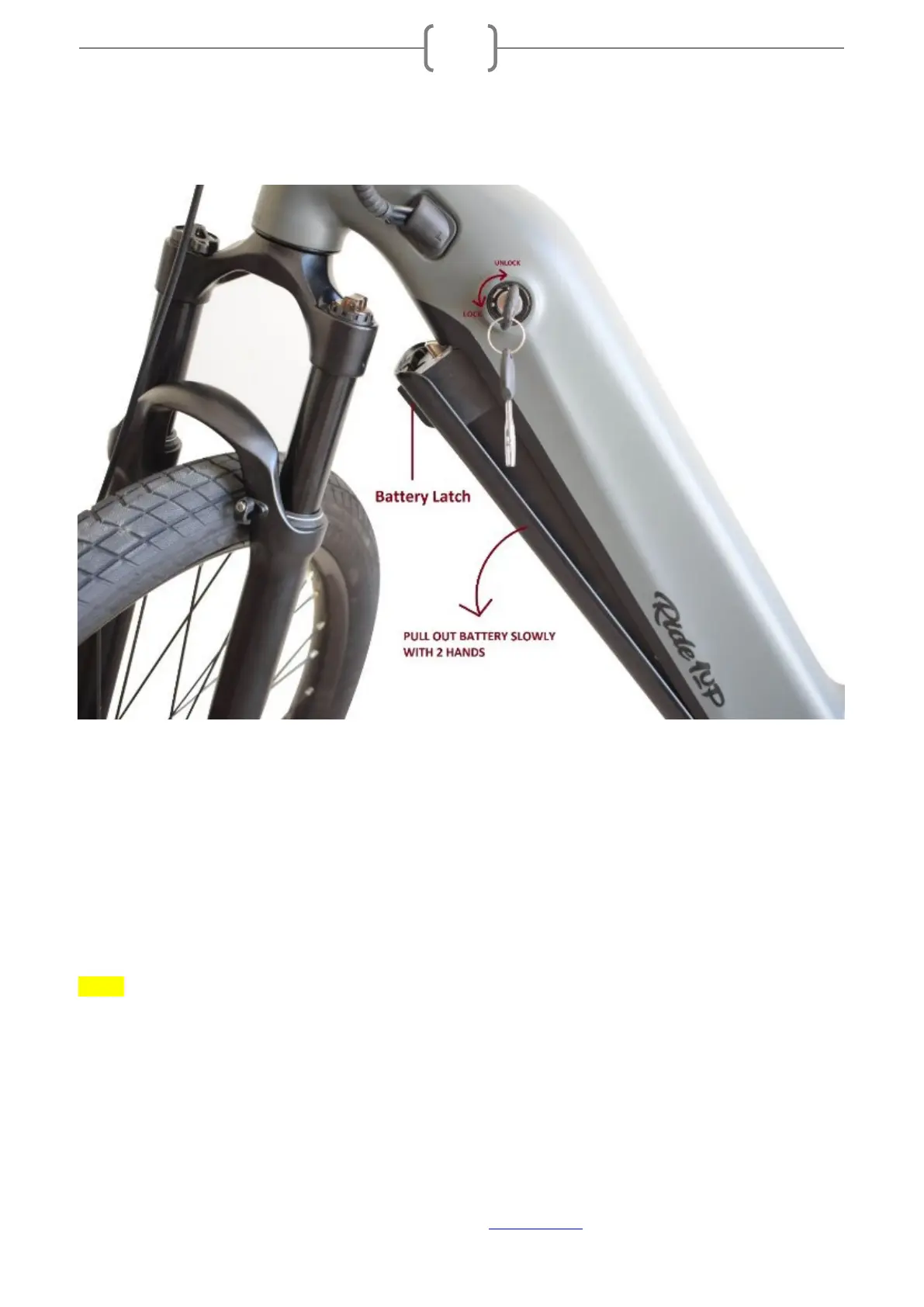

4. Battery Connection & Removal
• Insert the key into the battery key hole.
• Turn the key in a clockwise direction (At 90 degrees).
• The battery is heavy, use both hands to avoid dropping and damaging the battery.
• With one hand holding the battery in, gently rotate the knob to the left or right and carefully use both
hands to remove the battery.
• If the knob feels stuck, do not force it, simply take the weight off of the latch and it will release easily.
• Replace battery with key in the same position, then turn key to lock.
• Charging port is on the right side of the battery at the top of the down tube.
NOTE: ◆ ALWAYS KEEP THE CHARGER PORT COVERED TO PROTECT AGAINST MOISTURE, WHICH CAN
DESTROY THE BATTERY.
