• Install the quick release skewer. The narrow part of the cone springs should face inward.
(Figure 4)
• Rotate to tighten and then hand tighten the axle skewer quick release arm. Line up the disc
rotor to make sure there is space on each side, so they don’t rub. Then make sure the wheel is
secure.
WARNING ◆ IT IS VITAL THAT THE AXLE BOLTS HAVE BEEN TIGHTENED. IF THEY ARE NOT
PROPERLY ALIGNED, THE WHEEL MAY COME OFF, CAUSING SERIOUS INJURY AND/OR DEATH. ◆

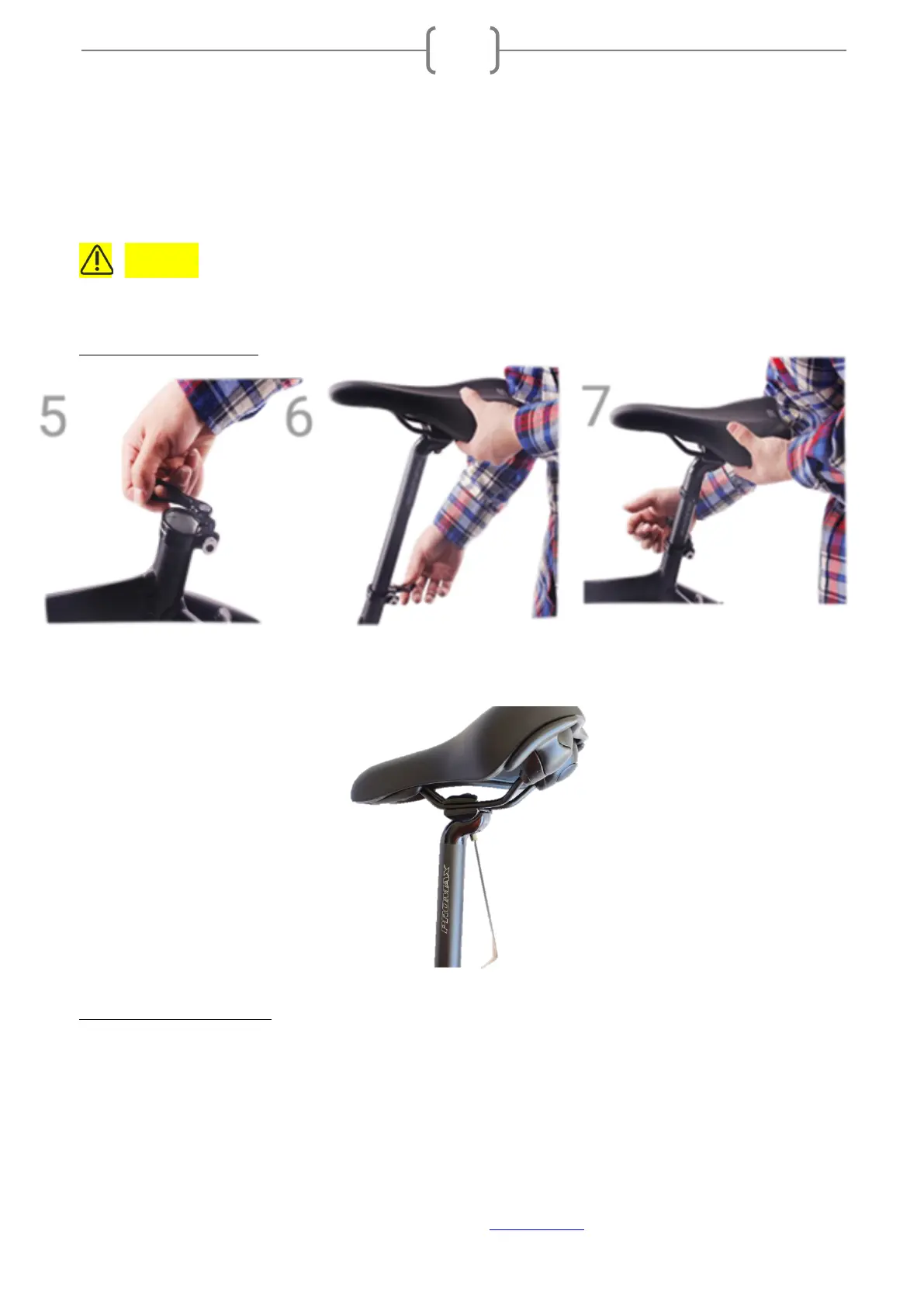

3.3 Seat Post Assembly:
• Open the seat clamp and insert the seat post to or past the minimum insertion point. (Figure 5 & 6)
• Adjust the suitable height and rotate the clamp to tighten and then shut it. (Figure 7)
3.4 Seat Clamp Assembly:
• Slide saddle into seat post clamp.
• Using an 6mm hex wrench. Tighten the bolt to 12 nm of torque (unless noted otherwise on
seatpost).
