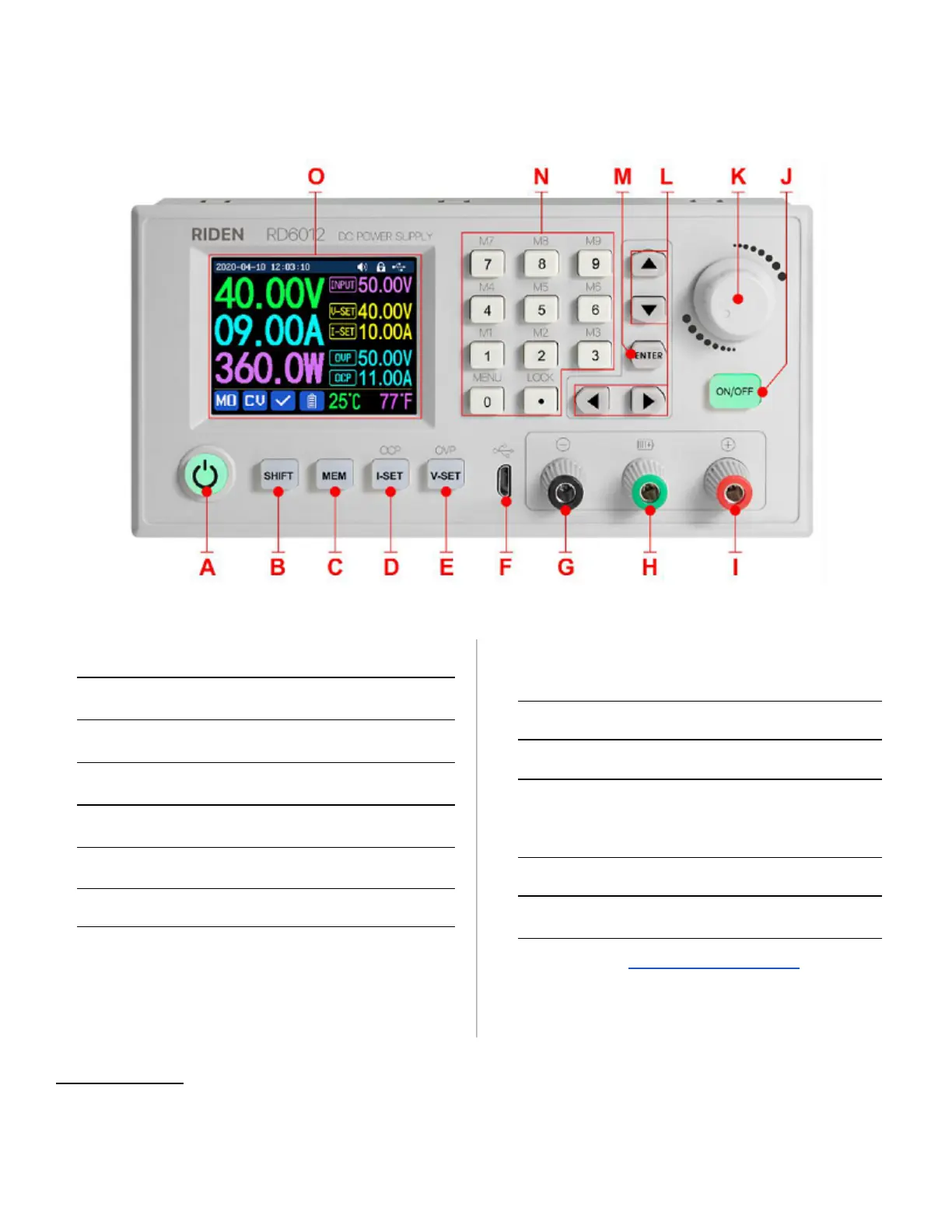

7. Front Panel Layout
A “POWER” button
B “SHIFT” button
C “MEM” button
D “I-SET” button
E “V-SET” button
F Micro-USB port
G Negative Binding post / terminal
H Battery Positive Binding post / terminal
Dedicated Battery Charging (+) output
I Output Positive (+) Binding post / terminal
General Purpose (+) Output
J Output “ON/OFF” button
K “ENCODER” knob
L Direction arrows
“◄”, “►”, “▲”, “▼”
M “ENTER” button
N Numbered “KEYPAD”
O Display - ‘Display Screen Layout’ for Detail
Safety NOTE:
The GREEN Binding post IS NOT GROUND.
