22.3. Short Circuit Response Time Testing
Test 1:
Setup:
Unit: RD6018 Load: 5 Ohm (Two 10 W, 10 Ω resistors in parallel)
V-SET: 10V I-SET: 10A
Test method:
Output was turned ON and allowed to settle at 10V, 2A.
A short circuit was introduced.

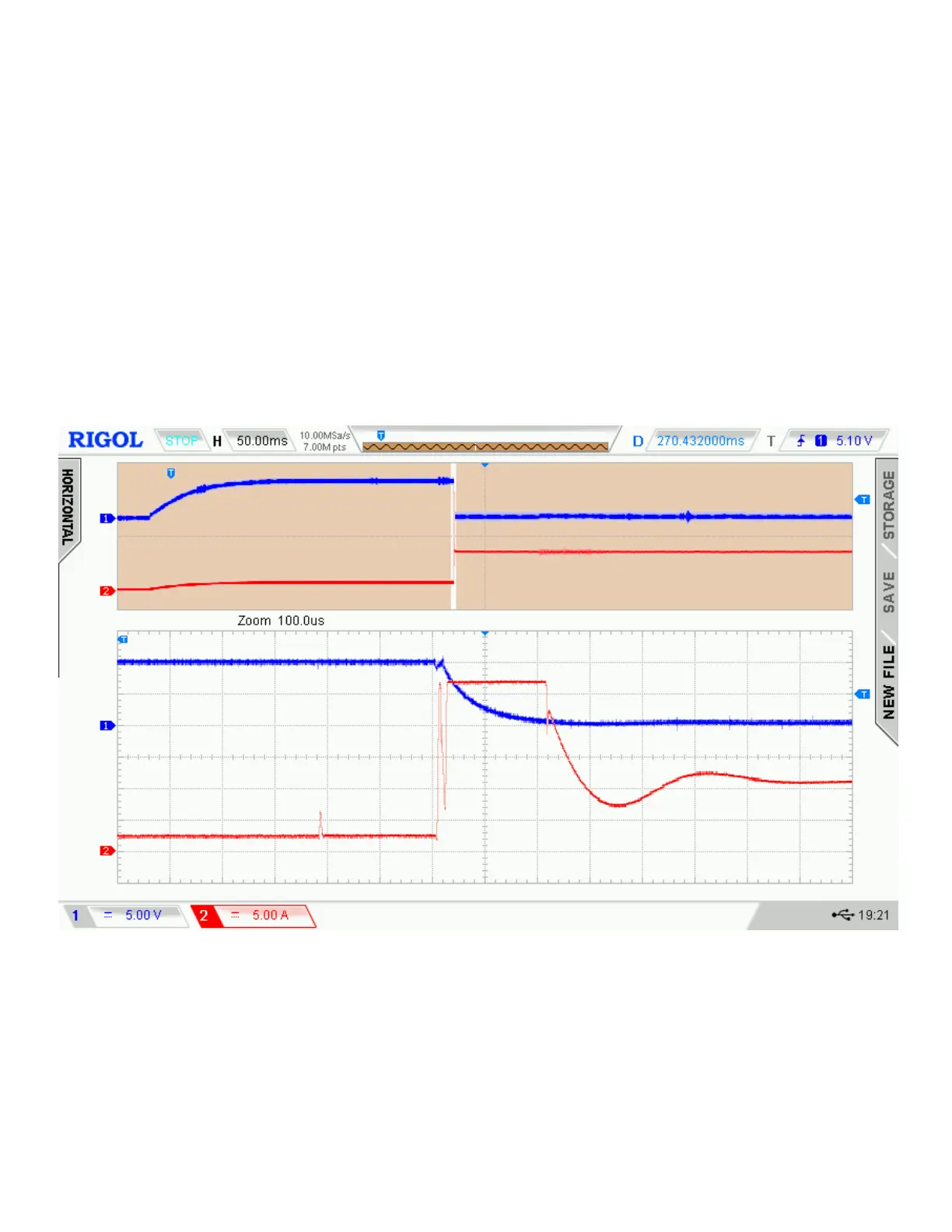

Results:
Starting from 2 Amps, the current goes up to ~ 27 Amps (perhaps higher) for about 200
microseconds then settles back to around 10 Amps after about 600 microseconds.
