1.3 Panel Instruction

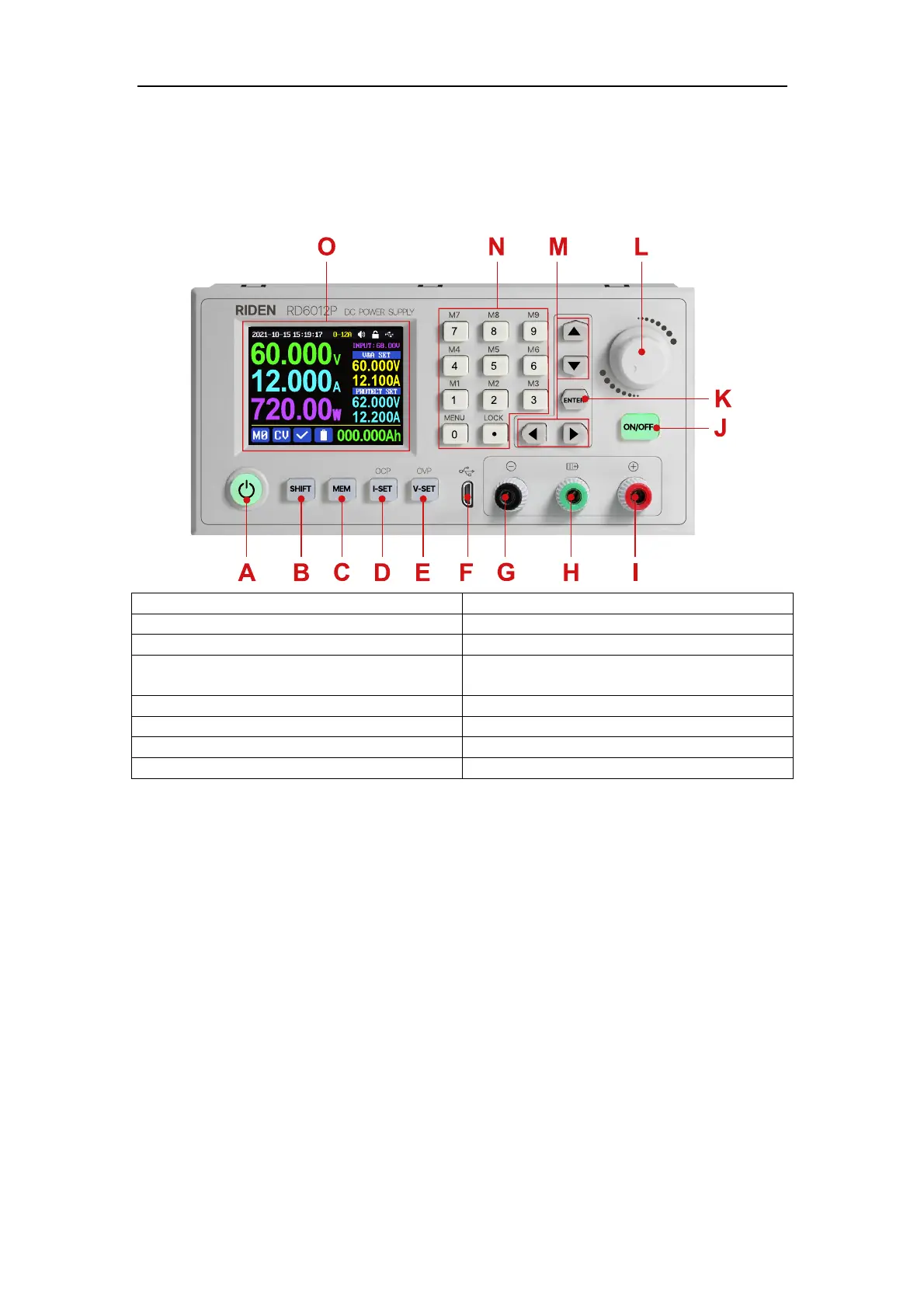

1.3.1 Front Panel
A: Power button
B: SHIFT Second function button
C: Quick storage button
D: Current/Over current protection setting
E: Voltage/Over voltage protection setting
F: Micro USB port
G: Power supply output negative terminal/
Battery charging negative terminal
H: Battery charging positive terminal
(Dedicated terminal for battery charging)
I: Power supply output positive terminal
J: Output switch
K: Enter/ Confirm button
L: encoder potentiometer/Cancel button
M: Direction button
N: keypad
O: Screen
