5. Rotate safety cover back to its position and replace
the three (3) screws.
Never use this saw with the guard re-
moved.
Replacing Carbon Brushes
1. Replace carbon brushes when they wear down to
about
1
/
4
″ (6mm) or sparking will occur. Both brushes
should be changed at the same time (Figure 10).
2. Use the slotted ( – ) screw driver to remove the
brush caps (Figure 11).
3. Take out the worn brushes inside, put in new ones
and replace the caps.
Saw Storage
Motor-driven equipment must be kept
indoors or well covered in rainy weather. Store the
machine in a locked area that is out of reach of children
and people unfamiliar with saws. This saw can cause
serious injury in the hands of untrained users.

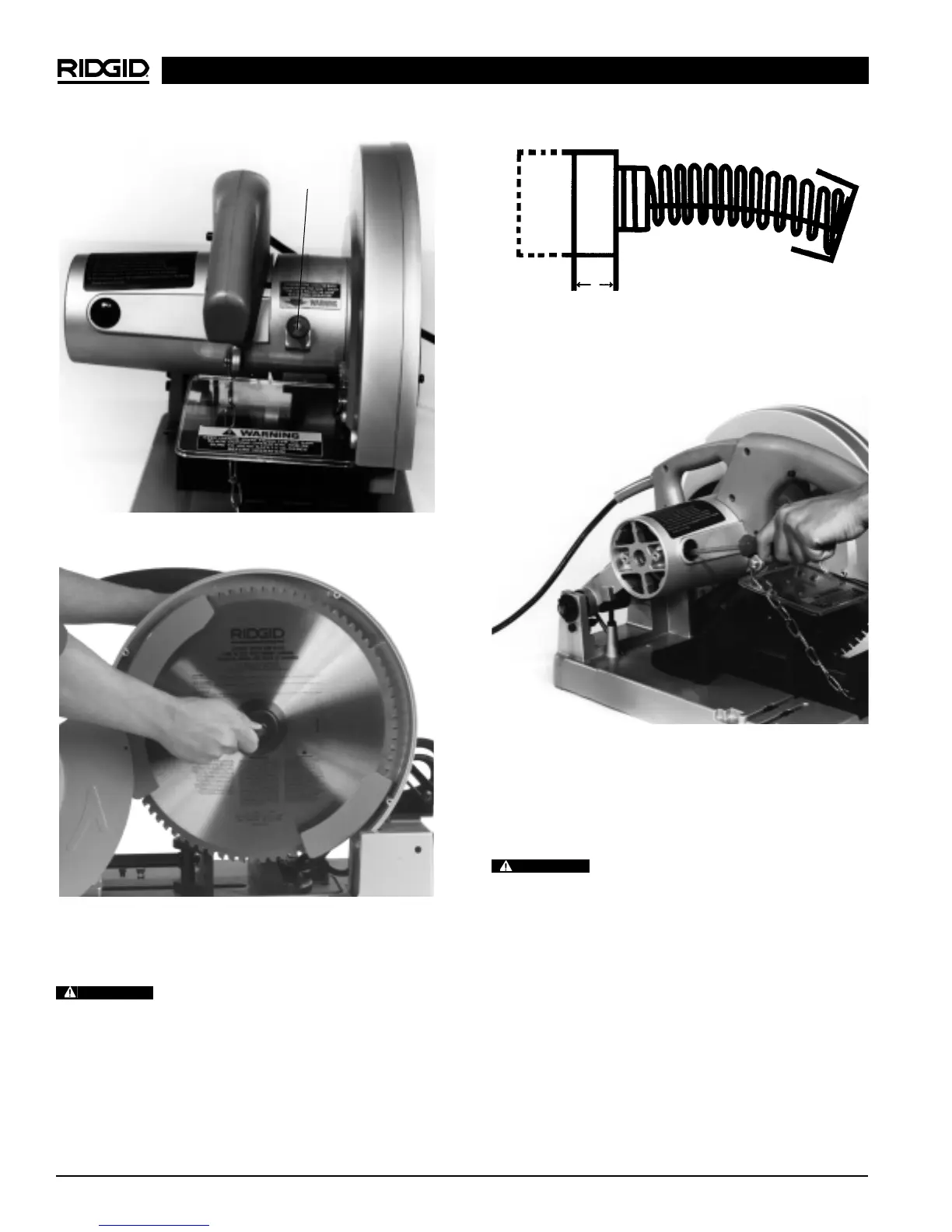

Figure 8 – Removing Saw Blade
Spindle Lock
Figure 9 – Installing Saw Blade
WARNING
Figure 10 – Carbon Brush Wear
Figure 11 – Removing Brush Caps
WARNING
